BDCN-20-13+ - Mini-Circuits

Description: Signal Conditioning 20.7 dB SMT Bi-Directional Coupler, 360 - 1000 MHz, 50 ohms

Download BDCN-20-13+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

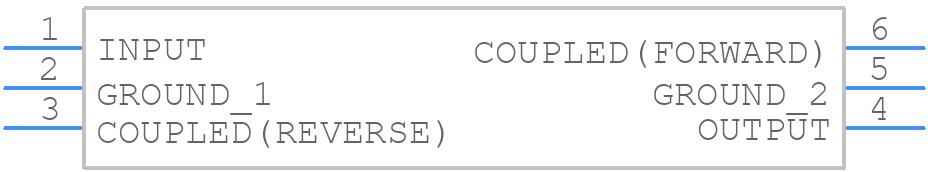

BDCN-20-13+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
BDCN-20-13+ - Mini-Circuits PCB footprint - Other - Other - BDCN-20-13+-2
click to zoom
3D Models
BDCN-20-13+ - Mini-Circuits - 3D model - Other - BDCN-20-13+-2
click to zoom

BDCN-20-13+ Details

  • Manufacturer Part Number:

    BDCN-20-13+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.67

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    42.04 dBm

  • Insertion Loss-Max:

    0.4 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    360 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    BI-DIRECTIONAL COUPLER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.2

BDCN-20-13+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a footprint with a minimum pad size of 0.5mm x 0.5mm and a spacing of 0.5mm between pads. A recommended PCB layout is available in the application note AN-60-001.
  • The BDCN-20-13+ requires a bias voltage of 5V and a bias current of 10mA. Ensure that the bias circuit is properly designed and implemented to achieve optimal performance.
  • The BDCN-20-13+ can handle up to 1W of power. Exceeding this limit may result in device damage or degradation.
  • Common issues with the BDCN-20-13+ include poor impedance matching, incorrect biasing, and overheating. Troubleshoot by checking the PCB layout, bias circuit, and thermal management.
  • Yes, the BDCN-20-13+ is designed for high-reliability applications and meets the requirements of MIL-STD-883. However, it is essential to follow proper design, manufacturing, and testing procedures to ensure reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BDCN-20-13+ Overview

Use the download button to access the BDCN-20-13+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BDCN-, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
