BDJ0FC0WFP-E2 - ROHM Semiconductor

Description: 1A 10V, Fixed Output, High-Accuracy LDO Regulator

Download BDJ0FC0WFP-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

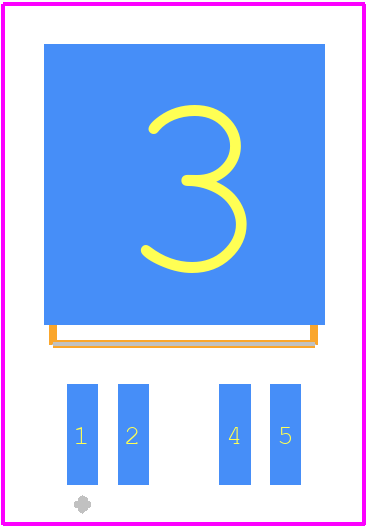

PCB Footprints
BDJ0FC0WFP-E2 - ROHM Semiconductor PCB footprint - Other - Other - TO252-5
click to zoom
3D Models
BDJ0FC0WFP-E2 - ROHM Semiconductor  - 3D model - Other - TO252-5
click to zoom

BDJ0FC0WFP-E2 Details

  • Manufacturer Part Number:

    BDJ0FC0WFP-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    10

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage-Max:

    26.5 V

  • Input Voltage-Min:

    11 V

  • JESD-30 Code:

    R-PSSO-G4

  • Length:

    6.5 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature TJ-Max:

    150 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    10.1 V

  • Output Voltage1-Min:

    9.9 V

  • Output Voltage1-Nom:

    10 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-252

  • Package Equivalence Code:

    SMSIP5H,.37,50TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    2.5 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Voltage Tolerance-Max:

    1%

  • Width:

    5.5 mm

BDJ0FC0WFP-E2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BDJ0FC0WFP-E2 is -40°C to 125°C.
  • To ensure reliability, follow the recommended derating guidelines for the device, and consider using thermal management techniques such as heat sinks or thermal interfaces.
  • The maximum allowed power dissipation for the BDJ0FC0WFP-E2 is 1.5W. Exceeding this limit can lead to device failure or reduced lifespan.
  • Yes, the BDJ0FC0WFP-E2 is suitable for switching regulator applications due to its low RDS(on) and high-speed switching capabilities.
  • To minimize high-frequency noise and EMI, use proper PCB layout techniques, such as separating analog and digital grounds, and consider adding noise filters or EMI shielding.
