BDJ2FD0WHFP-TR - ROHM Semiconductor

BDJ2FD0WHFP-TR Details

• Manufacturer Part Number:

  BDJ2FD0WHFP-TR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

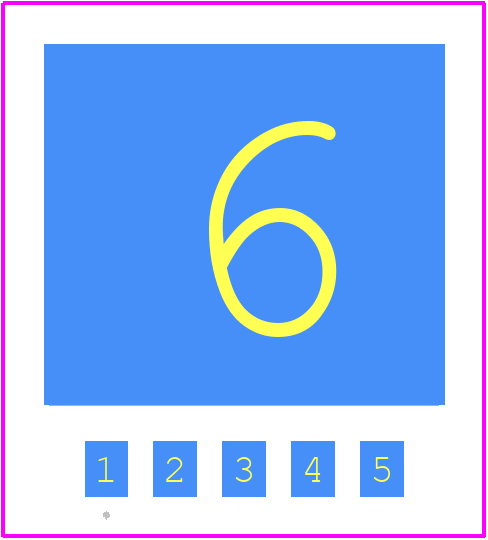

• Package Description:

  HRP5, 5-PIN

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2018-03-27

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  9

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.55 V

• Dropout Voltage1-Nom:

  0.4 V

• Input Voltage Absolute-Max:

  35 V

• Input Voltage-Max:

  32 V

• Input Voltage-Min:

  13 V

• JESD-30 Code:

  R-PSSO-G5

• Length:

  9.395 mm

• Line Regulation-Max:

  0.08%

• Load Regulation-Max:

  0.168%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  2 A

• Output Voltage1-Max:

  12.12 V

• Output Voltage1-Min:

  11.88 V

• Output Voltage1-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Equivalence Code:

  SMSIP5H,.41,67TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Packing Method:

  TR, EMBOSSED

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  2.005 mm

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.72 mm

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Voltage Tolerance-Max:

  1%

• Width:

  8 mm
