Part Image

BF720T1G - onsemi

Description: Bipolar Transistors - BJT 100mA 300V NPN

Download BF720T1G Model

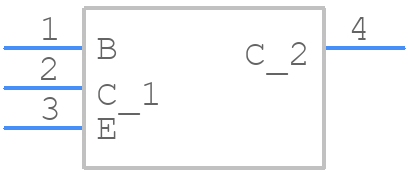

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BF720T1G - onsemi PCB footprint - SOT223 (3-Pin) - SOT223 (3-Pin) - SOT−223 (TO−261) CASE 318E−04 ISSUE R
click to zoom
3D Models
BF720T1G - onsemi  - 3D model - SOT223 (3-Pin) - SOT−223 (TO−261) CASE 318E−04 ISSUE R
click to zoom

BF720T1G Details

  • Manufacturer Part Number:

    BF720T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-223 (TO-261) 4 LEAD

  • Package Description:

    CASE 318E-04, TO-261, 4 PIN

  • Pin Count:

    4

  • Manufacturer Package Code:

    0.0318

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.75

  • Factory Lead Time:

    32 Weeks, 4 Days

  • Manufacturer:

    onsemi

  • Risk Rank:

    1.03

  • YTEOL:

    7.8

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    300 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    50

  • JEDEC-95 Code:

    TO-261AA

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    1.5 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    60 MHz

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BF720T1G Overview

Use the download button to access the BF720T1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BF720, or try a keyword search, such as Power Bipolar Transistors
