Part Image

BFCG-1902+ - Mini-Circuits

Description: Signal Conditioning BANDPASS FLTR / SURF MT / RoHS

Download BFCG-1902+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

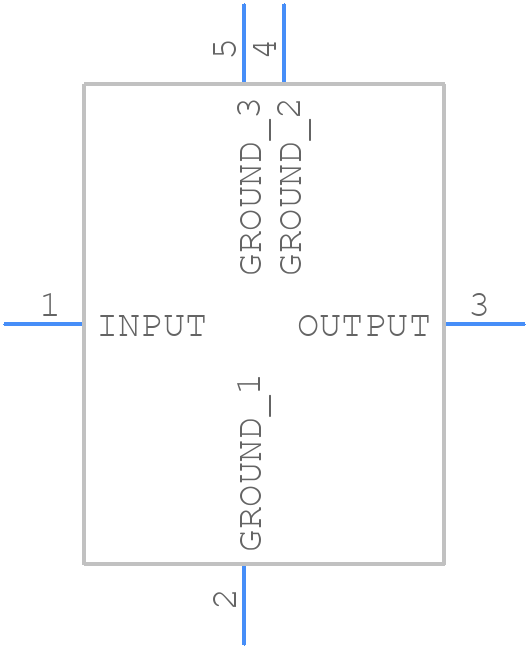

Symbol
BFCG-1902+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
BFCG-1902+ - Mini-Circuits PCB footprint - Other - Other - GE0805C-13
click to zoom
3D Models
BFCG-1902+ - Mini-Circuits - 3D model - Other - GE0805C-13
click to zoom

BFCG-1902+ Details

  • Manufacturer Part Number:

    BFCG-1902+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.44

  • Average Input Power:

    1 W

  • Center or Cutoff Frequency (fo/fc):

    18700 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    0.56 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    2.5 dB

  • Length:

    2.01 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Width:

    1.24 mm

BFCG-1902+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt resistors, as well as capacitors. Mini-Circuits provides a impedance matching calculator on their website, which can help you determine the required component values.
  • While the datasheet specifies the maximum input power, it's essential to note that exceeding this value can cause permanent damage to the amplifier. As a general rule, it's recommended to derate the input power by 1-2 dB to ensure safe operation.
  • To minimize the noise figure, ensure that the input signal is properly filtered and matched to the amplifier's input impedance. Additionally, using a low-noise voltage regulator and decoupling the power supply can help reduce the noise figure.
  • While the datasheet specifies the operating temperature range, it's essential to note that the amplifier's performance may degrade at extreme temperatures. It's recommended to operate the amplifier within the specified range to ensure optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BFCG-1902+ Overview

Use the download button to access the BFCG-1902+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BFCG-, or try a keyword search, such as Ceramic Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
