BFCQ-1162+ - Mini-Circuits

Description: Bandpass Filter

Download BFCQ-1162+ Model

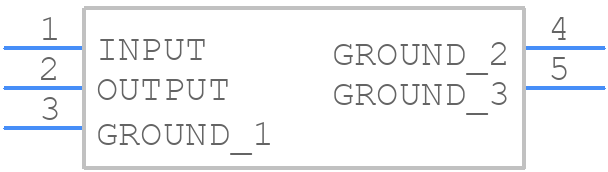

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BFCQ-1162+ - Mini-Circuits PCB footprint - Other - Other - NL1008C-7
click to zoom
3D Models
BFCQ-1162+ - Mini-Circuits  - 3D model - Other - NL1008C-7
click to zoom

BFCQ-1162+ Details

  • Manufacturer Part Number:

    BFCQ-1162+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.19

  • Average Input Power:

    1 W

  • Center or Cutoff Frequency (fo/fc):

    11600 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    0.71 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    2.49 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Width:

    2.01 mm
