Part Image

BG950SGL00AA-8N-SGNSA - Quectel

Description: Multiprotocol Modules Cat M1/Cat NB2 - iSIM + QuecOpen + GNSS (w/o WWAN concurrency) , 23.6mm x 19.9mm x 2.2mm

Download BG950SGL00AA-8N-SGNSA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BG950SGL00AA-8N-SGNSA - Quectel - PCB symbol
click to zoom
PCB Footprints

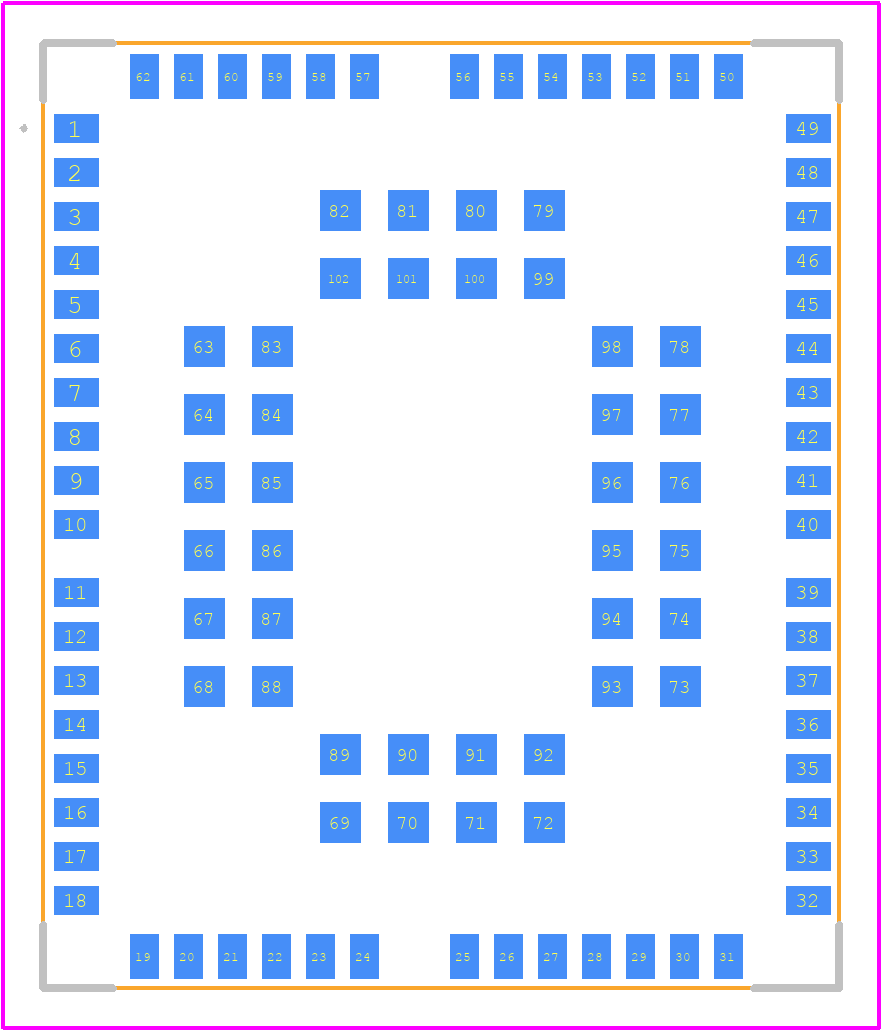

BG950SGL00AA-8N-SGNSA - Quectel PCB footprint - Other - Other - 102-LGA
click to zoom
3D Models
BG950SGL00AA-8N-SGNSA - Quectel - 3D model - Other - 102-LGA
click to zoom

BG950SGL00AA-8N-SGNSA Details

  • Manufacturer Part Number:

    BG950SGL00AA-8N-SGNSA

  • Manufacturer:

    Quectel Wireless Solutions Co Ltd

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BG950SGL00AA-8N-SGNSA Overview

Use the download button to access the BG950SGL00AA-8N-SGNSA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BG950, or try a keyword search, such as Other Telecom ICs

Parts related to BG950SGL00AA-8N-SGNSA

Showing 0 results
