BG96MA-128-SGN - Quectel

Description: Cellular EDGE, GPRS, GSM, HSPA, LTE, UMTS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount

Download BG96MA-128-SGN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BG96MA-128-SGN - Quectel - PCB symbol
click to zoom
PCB Footprints

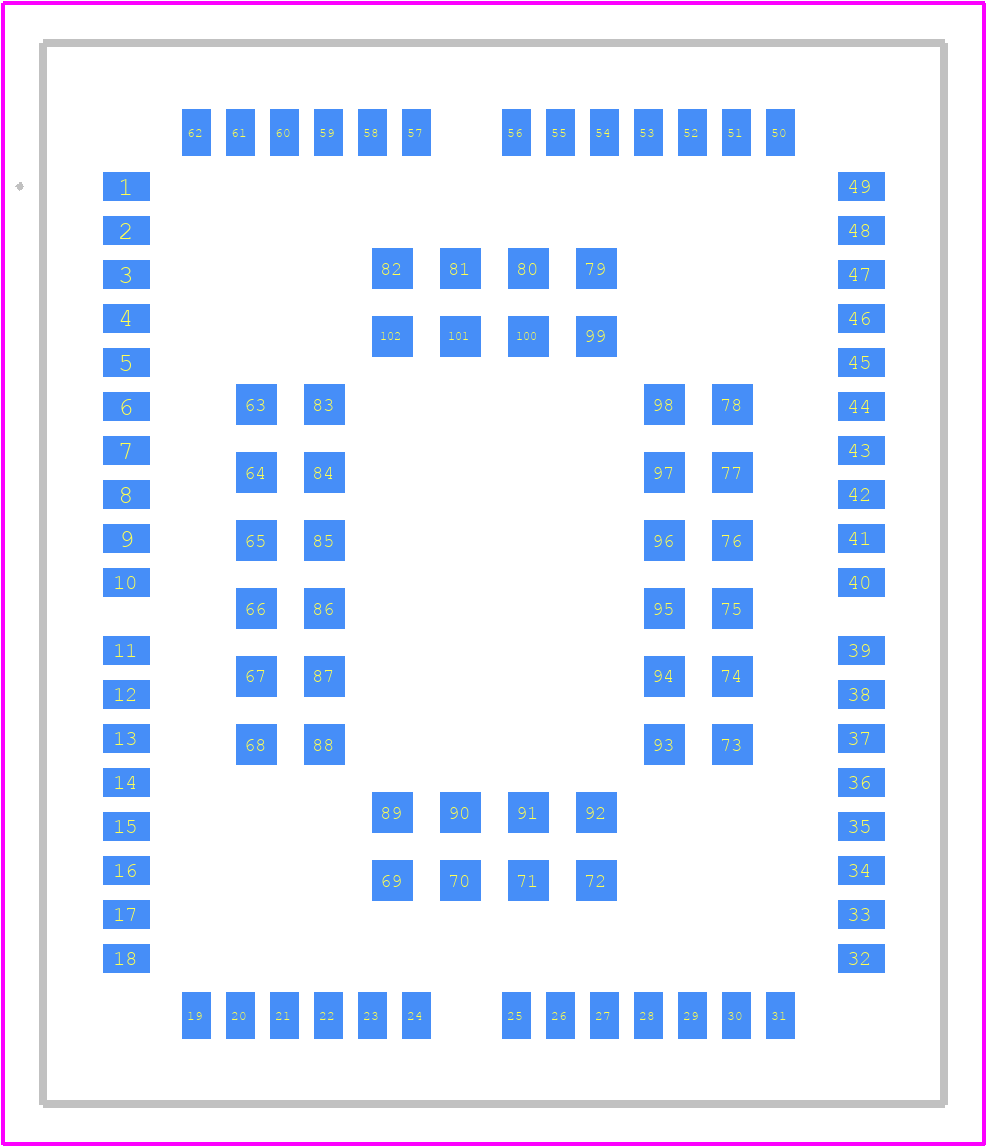

BG96MA-128-SGN - Quectel PCB footprint - Other - Other - BG96MA-128-SGN-3
click to zoom
3D Models
BG96MA-128-SGN - Quectel - 3D model - Other - BG96MA-128-SGN-3
click to zoom

BG96MA-128-SGN Details

  • Manufacturer Part Number:

    BG96MA-128-SGN

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    LGA-102

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Quectel Wireless Solutions Co Ltd

  • JESD-30 Code:

    R-XXMA-N102

  • Length:

    26.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    102

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.3 mm

  • Supply Voltage-Nom:

    3.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    22.5 mm

BG96MA-128-SGN Frequently Asked Questions (FAQs)

  • The maximum power consumption of the BG96MA-128-SGN module is around 2.5W, but it can vary depending on the operating mode and usage scenario.
  • To configure the BG96MA-128-SGN module for low power consumption, you can use the AT command 'AT+CPWROFF' to enable power saving mode, and adjust the sleep timer using 'AT+CSCLK' command. Additionally, you can also use the 'AT+CEDRXS' command to set the eDRX (extended discontinuous reception) mode.
  • The maximum data transfer rate of the BG96MA-128-SGN module is up to 300Mbps for downlink and up to 75Mbps for uplink, depending on the network conditions and usage scenario.
  • You can update the firmware of the BG96MA-128-SGN module using the Quectel's proprietary tool, such as the Quectel Firmware Update Tool, or by using the AT command 'AT+QFU' to update the firmware over-the-air (FOTA).
  • The operating temperature range of the BG96MA-128-SGN module is -40°C to +85°C, making it suitable for use in a wide range of industrial and commercial applications.
