BGA7130,118 - NXP

Description: RF Amp Single MMIC Amp 2.7GHz 5.25V 8-Pin HVSON EP T/R

Download BGA7130,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

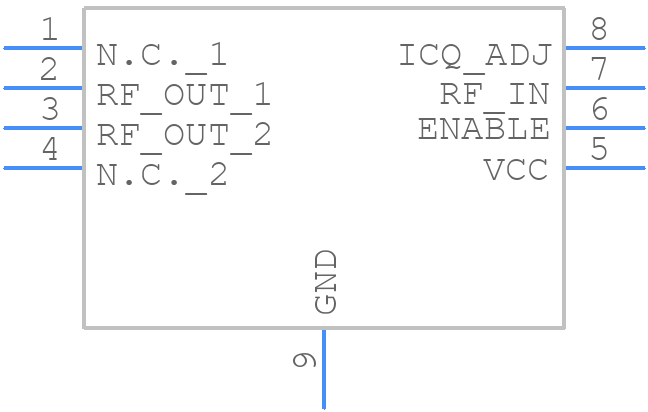

Symbol
BGA7130,118 - NXP - PCB symbol
click to zoom
PCB Footprints
BGA7130,118 - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - SOT908-3
click to zoom
3D Models
BGA7130,118 - NXP - 3D model - Small Outline No-lead - SOT908-3
click to zoom

BGA7130,118 Details

  • Manufacturer Part Number:

    BGA7130,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Package Description:

    MO-229, SOT-908-3, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT908-3

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Power Supplies:

    5 V

  • Supply Current-Max:

    550 mA

  • Surface Mount:

    YES

BGA7130,118 Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout and thermal management guide in their application note AN11542. It's essential to follow these guidelines to ensure optimal performance and thermal dissipation.
  • NXP recommends using their impedance matching tool, which can be found on their website. This tool helps optimize the impedance matching for the specific application and frequency range.
  • The maximum power handling capability of the BGA7130,118 is 31.5 dBm. However, it's essential to consider the specific application, frequency range, and operating conditions to ensure the device operates within its recommended specifications.
  • NXP provides a troubleshooting guide in their application note AN11543, which covers common issues and their solutions. Additionally, checking the PCB layout, impedance matching, and operating conditions can help identify and resolve issues.
  • NXP provides a soldering and rework guide in their application note AN11544. It's essential to follow these guidelines to ensure reliable and repeatable soldering and rework processes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BGA7130,118 Overview

Use the download button to access the BGA7130,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BGA71, or try a keyword search, such as RF/Microwave Amplifiers
