BGA715N7E6327XTSA2 - Infineon

Description: SiGe LN GNSS RF Amplifier 1.5-3.3V TSNP7

Download BGA715N7E6327XTSA2 Model

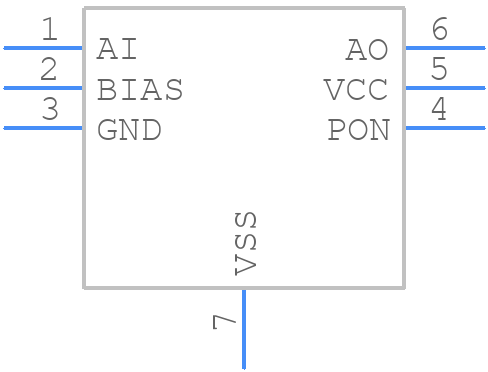

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BGA715N7E6327XTSA2 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - BGA715N7E6327XTSA2
click to zoom
3D Models
BGA715N7E6327XTSA2 - Infineon  - 3D model - Small Outline No-lead - BGA715N7E6327XTSA2
click to zoom

BGA715N7E6327XTSA2 Details

  • Manufacturer Part Number:

    BGA715N7E6327XTSA2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    ROHS COMPLIANT, LEADLESS, TSLP-7

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    20 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    1615 MHz

  • Operating Frequency-Min:

    1550 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    NARROW BAND LOW POWER

  • Terminal Finish:

    Tin (Sn)

BGA715N7E6327XTSA2 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for optimal performance can be found in the application note 'BGA715N7E6327XTSA2 PCB Layout and Thermal Management Guidelines' available on the Infineon website. It provides guidance on PCB layout, thermal pad design, and heat sink attachment for optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow the guidelines outlined in the datasheet for operating temperature range and thermal management. Additionally, consider using thermal interface materials and heat sinks to reduce thermal resistance and ensure reliable operation.
  • The recommended soldering and rework conditions for the BGA715N7E6327XTSA2 can be found in the 'Soldering and Rework Guidelines' document available on the Infineon website. It provides guidance on soldering temperatures, times, and rework procedures to ensure reliable assembly and minimize the risk of damage.
  • For troubleshooting and debugging issues with the BGA715N7E6327XTSA2, refer to the 'Troubleshooting and Debugging Guide' available on the Infineon website. It provides guidance on identifying and resolving common issues, as well as using diagnostic tools and software to debug the device.
  • To prevent electrostatic discharge (ESD) damage, follow the recommended ESD protection and handling procedures outlined in the datasheet and the 'ESD Protection and Handling Guidelines' document available on the Infineon website. This includes using ESD-safe materials, grounding straps, and proper handling techniques.
