- Part Number BGU8052X
- Manufacturer NXP
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - 8-HWSON (2x2)
- Released Date Aug 3, 2023
- Last Modified Date Aug 4, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
BGU8052X Details
-
Manufacturer Part Number:
BGU8052X
-
Brand Name:
NXP Semiconductor
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Part Package Code:
SON
-
Pin Count:
8
-
Manufacturer Package Code:
SOT1327-1
-
HTS Code:
8542.33.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
1
-
RF/Microwave Device Type:
WIDE BAND LOW POWER
BGU8052X Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance matching.
-
Use a 1/4 wavelength monopole antenna or a dipole antenna with a balun. Ensure the antenna is impedance-matched to the BGU8052X's 50-ohm output. Consider using a PCB antenna or a external antenna with a good radiation pattern.
-
The maximum transmit power is dependent on the frequency band and regulatory requirements. Typically, the BGU8052X can achieve up to +20 dBm (100 mW) transmit power, but this may vary depending on the specific application and region.
-
Use the BGU8052X's built-in frequency synthesizer and configure the device to switch between different frequency channels using the SPI interface. Ensure that the frequency hopping sequence is compliant with regulatory requirements.
-
Use a separate microcontroller or a dedicated encryption IC to handle data encryption. The BGU8052X can be used for wireless transmission, while the encryption is handled externally. Consider using AES or other standardized encryption algorithms.
Trust Checks
Community Provided
System Verified
Community Approved
BGU8052X Overview

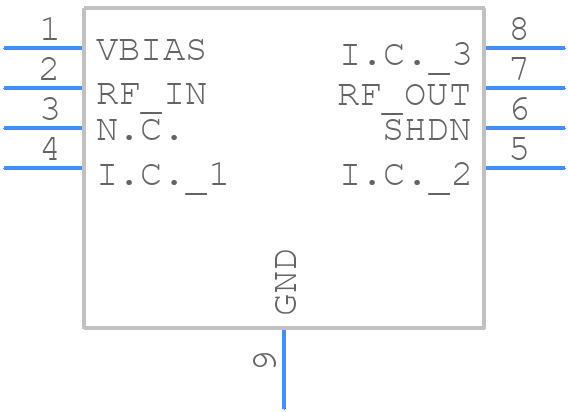

Use the download button to access the BGU8052X schematic symbol, PCB footprint, and 3D model.
