BGU8053X - NXP

Description: RF Amplifier Low noise high linearity amplifier

Download BGU8053X Model

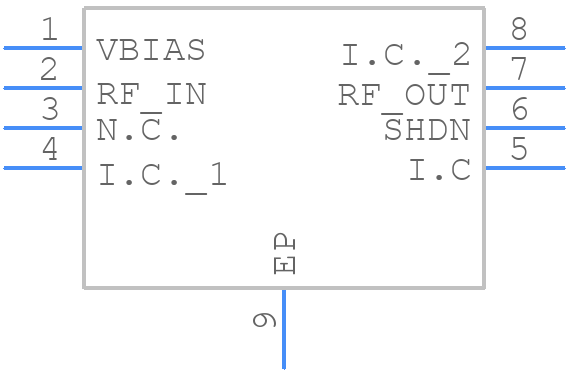

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BGU8053X - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-HWSON (2x2)
click to zoom
3D Models
BGU8053X - NXP  - 3D model - Small Outline No-lead - 8-HWSON (2x2)
click to zoom

BGU8053X Details

  • Manufacturer Part Number:

    BGU8053X

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SON

  • Package Description:

    MO-229, SOT-1327-1, 6 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT1327-1

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    1

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    2000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.08SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Screening Level:

    IEC-60134

  • Supply Current-Max:

    85 mA

  • Surface Mount:

    YES

  • VSWR-Max:

    1.08

BGU8053X Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance matching to minimize signal reflections.
  • Ensure the VCC pin is connected to a stable 3.3V power supply, and the VEN pin is tied to a logic high (3.3V) to enable the device. Also, ensure the input voltage to the VCC pin is filtered to minimize noise.
  • The recommended input power level is between -20 dBm and 0 dBm. Exceeding this range may result in reduced performance or damage to the device.
  • Use the external matching components (L1, L2, C1, and C2) to optimize the device for specific frequency bands. Refer to the application note AN11555 for more information on impedance matching.
  • The maximum operating temperature for the BGU8053X is 85°C. Exceeding this temperature may result in reduced performance or device failure.
