BH1415F-E2 - ROHM Semiconductor

Description: RF Transmitter COMMUNICATION LINK

Download BH1415F-E2 Model

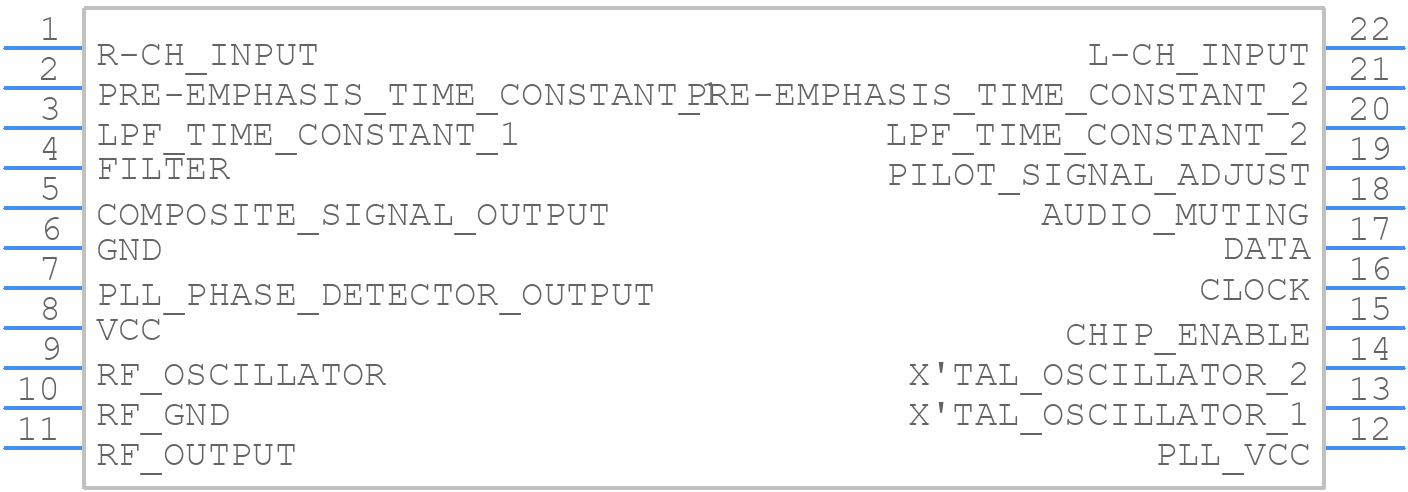

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BH1415F-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - BH1415F-E2
click to zoom

BH1415F-E2 Details

  • Manufacturer Part Number:

    BH1415F-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-22

  • Pin Count:

    22

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G22

  • Length:

    13.6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    22

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.01 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5.4 mm

BH1415F-E2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize electromagnetic interference (EMI).
  • Monitor the input voltage, output current, and operating temperature to ensure they are within the recommended ranges specified in the datasheet. Use thermal management techniques such as heat sinks or thermal interfaces to keep the device temperature within the recommended range.
  • Handle the device by the body, not the leads. Avoid touching the leads or pins to prevent electrostatic discharge (ESD) damage. Use an anti-static wrist strap or mat when handling the device. Store the device in an anti-static bag or container when not in use.
  • Yes, but ensure you follow the recommended design and manufacturing guidelines for high-reliability or safety-critical applications. Perform thorough testing and validation to ensure the device meets the required specifications and standards.
  • Use a systematic approach to troubleshoot issues. Check the power supply, input signals, and output connections. Verify the device is operated within its recommended operating conditions. Use oscilloscopes or logic analyzers to debug the issue. Consult the datasheet and application notes for troubleshooting guidelines.
