BH1790GLC-E2 footprint, schematic symbol and 3D model by ROHM Semiconductor

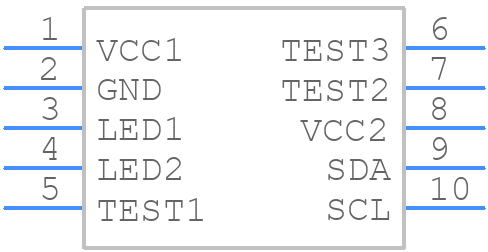

Symbol

click to zoom

PCB Footprints

BH1790GLC-E2 - ROHM Semiconductor PCB footprint - Other - Other - WLGA010V28

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BH1790GLC-E2
Part Number BH1790GLC-E2
Manufacturer ROHM Semiconductor
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - WLGA010V28
Released Date Sep 7, 2018
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

BH1790GLC-E2 Details

Manufacturer Part Number:
BH1790GLC-E2
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
WLGA-10
HTS Code:
8542.39.00.01
Date Of Intro:
2016-11-15
Manufacturer:
ROHM Semiconductor
YTEOL:
0
Additional Feature:
IT ALSO OPERATES AT 2.5 TO 3.6 V SUPPLY VOLTAGE
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
S-XBGA-N10
Length:
2.8 mm
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Package Body Material:
UNSPECIFIED
Package Code:
LGA
Package Equivalence Code:
LGA10,3X4(UNSPEC)
Package Shape:
SQUARE
Package Style:
GRID ARRAY
Seated Height-Max:
1 mm
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
1.7 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Form:
NO LEAD
Terminal Position:
BOTTOM
Width:
2.8 mm

BH1790GLC-E2 Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital signal traces separate and avoid running them parallel to each other.
Calibrate the sensor by applying a known temperature and adjusting the offset and gain values accordingly. Also, ensure good thermal contact between the sensor and the object being measured.
The maximum cable length for the I2C interface is 10 meters, but it's recommended to keep it as short as possible to minimize signal degradation and noise.
Yes, but ensure the device is properly sealed and protected from moisture and extreme temperatures. The device is rated for operation up to 85°C and 80% relative humidity.
Use a low-pass filter or a ferrite bead to filter out high-frequency noise. Also, ensure good power supply decoupling and use a stable voltage reference.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

BH1790GLC-E2 Overview

Use the download button to access the BH1790GLC-E2 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BH179, or try a keyword search, such as Other Signal Circuits
