BH1792GLC-E2 footprint, schematic symbol and 3D model by ROHM Semiconductor

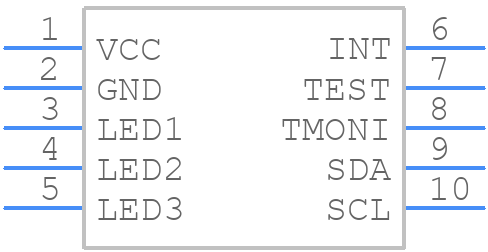

Symbol

click to zoom

PCB Footprints

BH1792GLC-E2 - ROHM Semiconductor PCB footprint - Other - Other - WLGA010V28

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BH1792GLC-E2
Part Number BH1792GLC-E2
Manufacturer ROHM Semiconductor
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - WLGA010V28
Released Date Oct 2, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BH1792GLC-E2 Details

Manufacturer Part Number:
BH1792GLC-E2
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
WLGA-10
HTS Code:
8542.39.00.01
Factory Lead Time:
111 Weeks
Date Of Intro:
2017-08-29
Manufacturer:
ROHM Semiconductor
YTEOL:
0
Additional Feature:
TERM PITCH-MAX
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
S-XBGA-B10
Length:
2.8 mm
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Package Body Material:
UNSPECIFIED
Package Code:
VLGA
Package Shape:
SQUARE
Package Style:
GRID ARRAY, VERY THIN PROFILE
Seated Height-Max:
1 mm
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
2.5 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Form:
NO LEAD
Terminal Pitch:
1 mm
Terminal Position:
BOTTOM
Width:
2.8 mm
