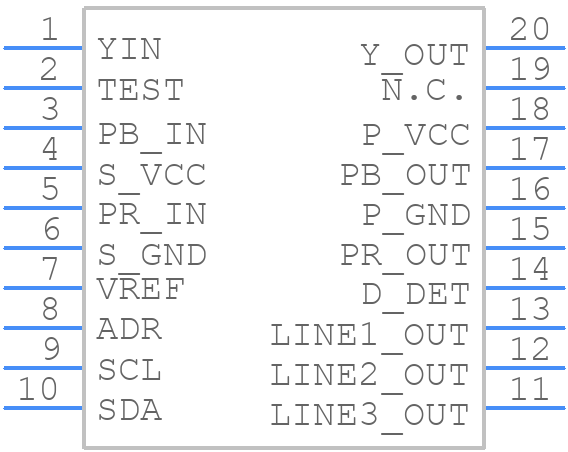

BH7602FS-E2 - ROHM Semiconductor

BH7602FS-E2 Details

• Manufacturer Part Number:

  BH7602FS-E2

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Part Package Code:

  SSOP

• Package Description:

  ROHS COMPLIANT, SSOP-20

• Pin Count:

  20

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  1

• Consumer IC Type:

  CONSUMER CIRCUIT

• JESD-30 Code:

  R-PDSO-G20

• Length:

  8.7 mm

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -35 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SOP20,.3,32

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• Supply Current-Max:

  68 mA

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Surface Mount:

  YES

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Width:

  5.4 mm
