BK-18650-PC8 footprint, schematic symbol and 3D model by Memory Protection Devices

Symbol

click to zoom

PCB Footprints

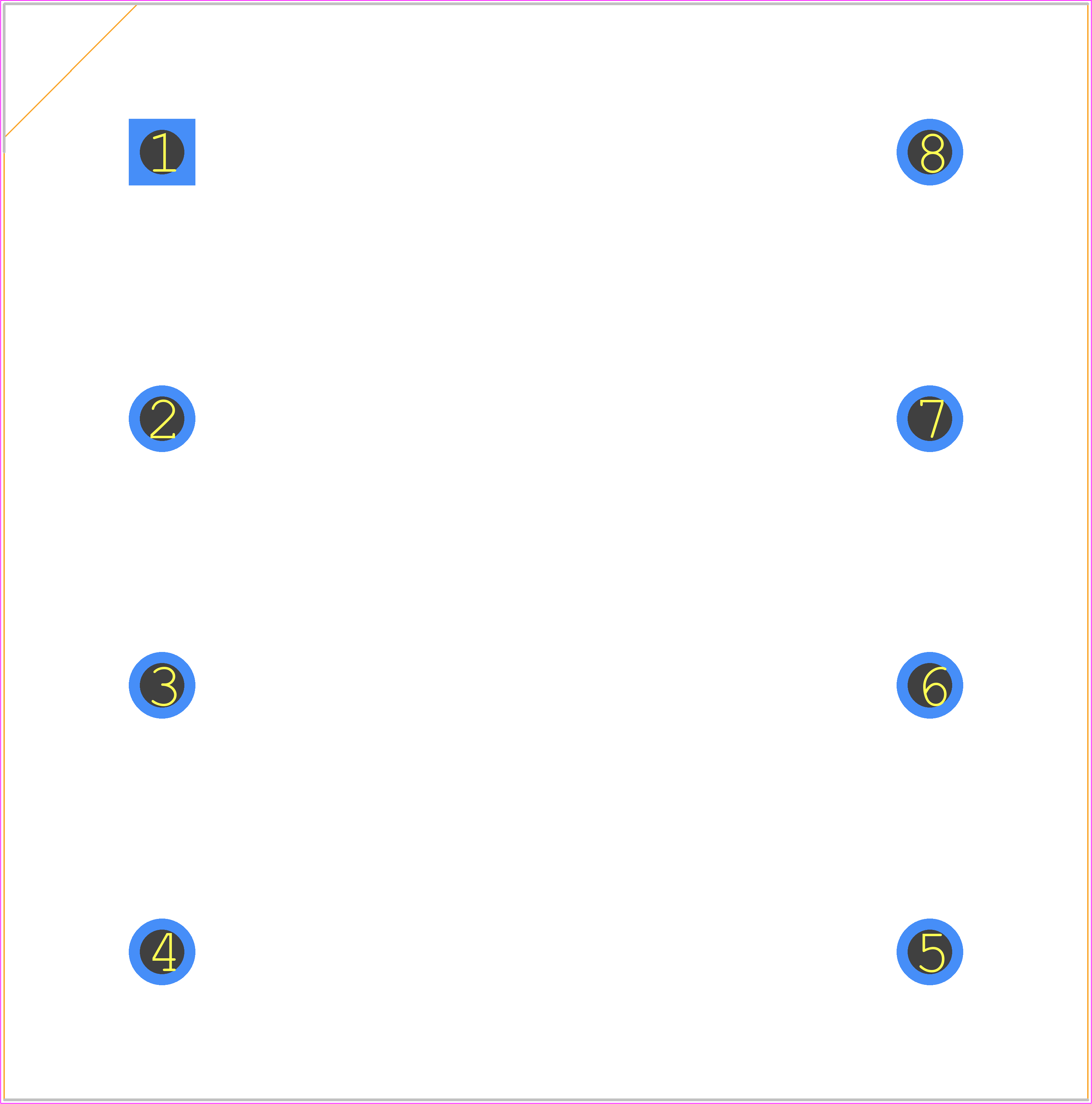

BK-18650-PC8 - Memory Protection Devices PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - BK-18650-PC8

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BK-18650-PC8
Part Number BK-18650-PC8
Manufacturer Memory Protection Devices
Pin Count 8
Part Category Undefined or Miscellaneous
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - BK-18650-PC8
Released Date Aug 5, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BK-18650-PC8 Details

Manufacturer Part Number:
BK-18650-PC8
Manufacturer:
Memory Protection Devices Inc (MPD)

Trust Checks

Expert Contribution

System Verified

Community Approved

BK-18650-PC8 Overview

Use the download button to access the BK-18650-PC8 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BK-18, or try a keyword search, such as Non-linear Resistors
