BL-HJX32X - American Bright LED

Description: -40?~+85? 120° 20mA 2V 619nm~630nm 625nm 75mW 900mcd Discrete Diode Red Top-mount Water Clear SMD3528-2P LED Indication - Discrete ROHS

Download BL-HJX32X Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this BL-HJX32X model

Email notifications will be applied after download.

Send part feedback

Symbol

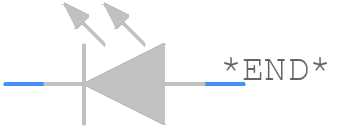

BL-HJX32X - American Bright LED - PCB symbol

PCB Footprints

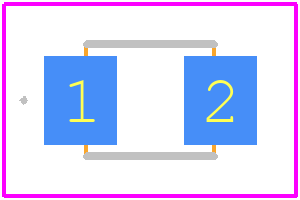

BL-HJX32X - American Bright LED PCB footprint - Other - Other - BL-HJX32X-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for BL-HJX32X
Part Number BL-HJX32X
Manufacturer American Bright LED
Pin Count 2
Part Category LED
Package Category Other
Footprint Name Other - BL-HJX32X-1
Released Date Sep 14, 2026
Last Modified Date Sep 12, 2026 9:55 PM UTC
Pinout / Pin List Click Here (Member Only)

BL-HJX32X Details

Manufacturer Part Number:
BL-HJX32X
Manufacturer:
American Bright Optoelectronics

Trust Checks

Community Provided

System Verified

Community Approved

BL-HJX32X Overview

Use the download button to access the BL-HJX32X schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BL-HJ, or try a keyword search, such as Visible LEDs
