BLA2ABD601SN4D - Murata Electronics

Description: BLA2A_N4D Series EMI Suppression Filter 600Ω±25% at 100MHz 100mA @85℃

Download BLA2ABD601SN4D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

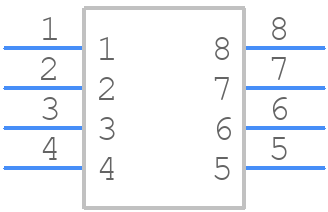

BLA2ABD601SN4D - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
BLA2ABD601SN4D - Murata Electronics PCB footprint - Other - Other - BLA2A L=2.0 W=1.0 T=0.5
click to zoom
3D Models
BLA2ABD601SN4D - Murata Electronics - 3D model - Other - BLA2A L=2.0 W=1.0 T=0.5
click to zoom

BLA2ABD601SN4D Details

  • Manufacturer Part Number:

    BLA2ABD601SN4D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    EIA STD PACKAGE SIZE 0804, 8 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    ARRAY TYPE

  • DC Resistance-Max:

    0.8 Ω

  • Filter Type:

    FERRITE CHIP

  • Height:

    0.5 mm

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    600 OHM Ω

  • Packing Method:

    TAPE

  • Rated Current:

    0.1 A

  • Terminal Finish:

    Tin (Sn)

  • Width:

    1 mm

BLA2ABD601SN4D Frequently Asked Questions (FAQs)

  • The recommended land pattern for the BLA2ABD601SN4D can be found in the Murata Land Pattern Recommendation document, which provides detailed guidelines for PCB layout and pad design.
  • The BLA2ABD601SN4D has a thermal resistance of 30°C/W. To handle thermal considerations, ensure good thermal conductivity between the component and the PCB, and consider using thermal vias or thermal pads to dissipate heat.
  • The maximum operating temperature range for the BLA2ABD601SN4D is -40°C to +85°C, as specified in the datasheet.
  • To ensure reliability in high-vibration environments, follow Murata's recommended mounting and soldering guidelines, and consider using additional mechanical support or potting compounds to secure the component.
  • The typical impedance of the BLA2ABD601SN4D is 50 ohms, as specified in the datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BLA2ABD601SN4D Overview

Use the download button to access the BLA2ABD601SN4D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BLA2A, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
