BLM41PG600SN1K - Murata Electronics

Description: BLM41_N1K Series EMI Suppression Filter 60Ω(Typ.) at 100MHz 6A @85℃

Download BLM41PG600SN1K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BLM41PG600SN1K - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

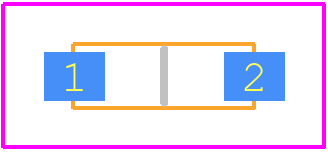

BLM41PG600SN1K - Murata Electronics PCB footprint - Other - Other - BLM41 L=4.5 W=1.6 T=1.6
click to zoom
3D Models
BLM41PG600SN1K - Murata Electronics - 3D model - Other - BLM41 L=4.5 W=1.6 T=1.6
click to zoom

BLM41PG600SN1K Details

  • Manufacturer Part Number:

    BLM41PG600SN1K

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    EIA STD PACKAGE SIZE 1806, 2 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    MONOLITHIC TYPE

  • Case Code:

    1806

  • Construction:

    Chip Bead

  • DC Resistance-Max:

    0.01 Ω

  • Filter Type:

    FERRITE CHIP

  • Frequency-Max:

    100 MHz

  • Frequency-Min:

    100 MHz

  • Height:

    1.6 mm

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    60 OHM Ω

  • Packing Method:

    TAPE

  • Rated Current:

    6 A

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Width:

    1.6 mm

BLM41PG600SN1K Frequently Asked Questions (FAQs)

  • The recommended land pattern for the BLM41PG600SN1K can be found in the Murata Land Pattern Recommendation document, which provides detailed information on the recommended pad layout and dimensions for optimal performance and reliability.
  • The BLM41PG600SN1K is a moisture-sensitive device and should be handled according to the JEDEC J-STD-033 standard. This includes storing the components in a dry environment, using a dry pack or nitrogen-filled packaging, and following proper baking procedures before reflow soldering.
  • The maximum reflow temperature for the BLM41PG600SN1K is 260°C, with a recommended reflow profile that includes a peak temperature of 250°C for 10-30 seconds.
  • Yes, the BLM41PG600SN1K is designed for high-frequency applications up to 6 GHz. However, it's essential to follow the recommended layout and impedance matching guidelines to ensure optimal performance and minimize signal loss.
  • The optimal impedance for the BLM41PG600SN1K depends on the specific application and frequency range. Murata provides impedance calculation tools and simulation models to help designers determine the optimal impedance for their specific use case.
