BLUENRG-134 - STMicroelectronics

Description: RF System on a Chip - SoC Bluetooth Low Energy System On Chip

Download BLUENRG-134 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

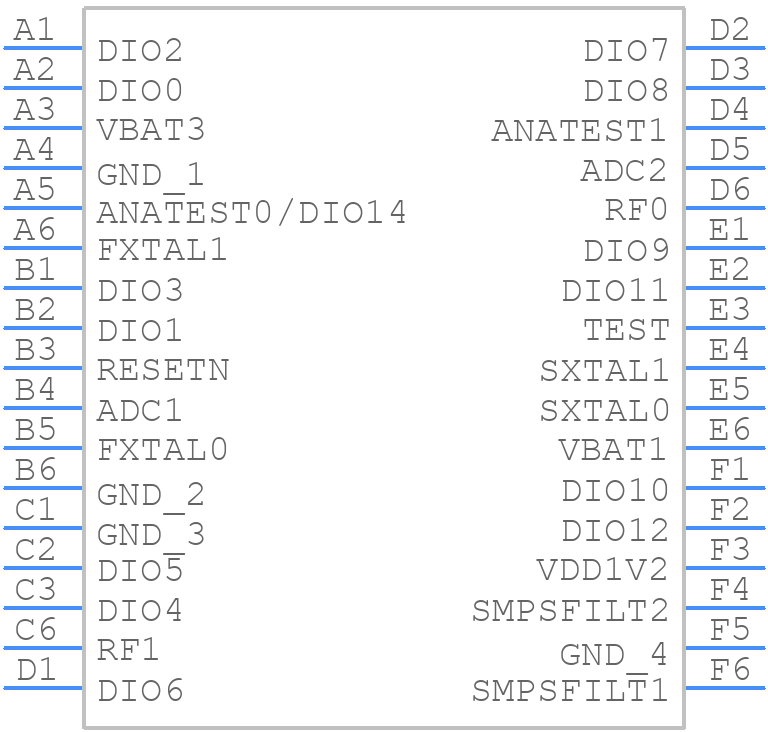

BLUENRG-134 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
BLUENRG-134 - STMicroelectronics PCB footprint - BGA - BGA - BLUENRG-134-
click to zoom
3D Models
BLUENRG-134 - STMicroelectronics - 3D model - BGA - BLUENRG-134-
click to zoom

BLUENRG-134 Details

  • Manufacturer Part Number:

    BLUENRG-134

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-34

  • Manufacturer Package Code:

    WLCSP MSL1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992.C

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • JESD-30 Code:

    R-PBGA-B34

  • Length:

    2.66 mm

  • Number of Functions:

    1

  • Number of Terminals:

    34

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2.56 mm

BLUENRG-134 Frequently Asked Questions (FAQs)

  • The maximum transmission power of the BLUENRG-134 is +5 dBm.
  • STMicroelectronics provides a coexistence algorithm in the BlueNRG-MSD software development kit (SDK) to ensure coexistence with other 2.4 GHz devices. The algorithm dynamically adjusts the transmission power and data rate to minimize interference.
  • STMicroelectronics recommends a 50-ohm, quarter-wavelength monopole antenna or a 50-ohm, half-wavelength dipole antenna for optimal performance. The antenna should be matched to the BLUENRG-134's 50-ohm output impedance.
  • The BLUENRG-134 supports AES-128 encryption and decryption. STMicroelectronics provides a cryptographic library in the BlueNRG-MSD SDK to implement secure data transmission. The library includes functions for encryption, decryption, and authentication.
  • The power consumption of the BLUENRG-134 in sleep mode is typically around 1.5 μA. However, this value can vary depending on the specific application and the wake-up mechanism used.
