BLUENRG-M2SP - STMicroelectronics

Description: Very low power application processor module for Bluetooth® LE v5.2

Download BLUENRG-M2SP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

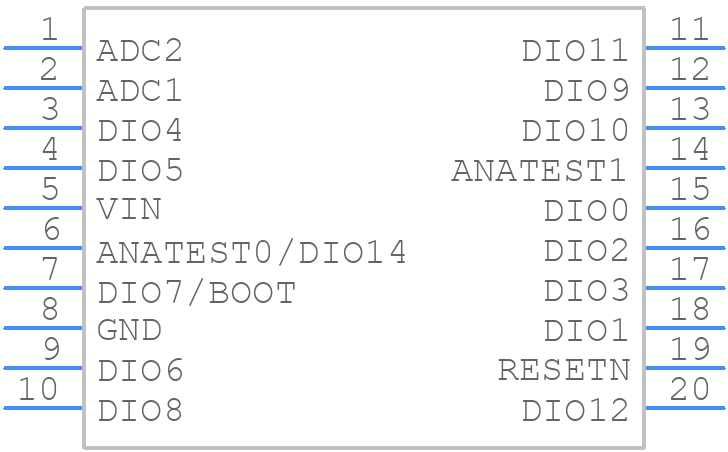

BLUENRG-M2SP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
BLUENRG-M2SP - STMicroelectronics PCB footprint - Other - Other - BLUENRG-M2SP-3
click to zoom
3D Models
BLUENRG-M2SP - STMicroelectronics - 3D model - Other - BLUENRG-M2SP-3
click to zoom

BLUENRG-M2SP Details

  • Manufacturer Part Number:

    BLUENRG-M2SP

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-20

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    5A992.C

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • JESD-30 Code:

    R-XXMA-N20

  • Length:

    13.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    240

  • Seated Height-Max:

    2.5 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    11.5 mm

BLUENRG-M2SP Frequently Asked Questions (FAQs)

  • The maximum transmission power of the BLUENRG-M2SP is +8 dBm.
  • To configure the BLUENRG-M2SP for Bluetooth 5.0, you need to set the device to use the 2M PHY and enable the long-range mode. This can be done through the SPI interface using the appropriate commands and registers.
  • Yes, the BLUENRG-M2SP can be used with an external antenna. However, you need to ensure that the antenna is designed for Bluetooth Low Energy (BLE) applications and is properly matched to the module's RF output.
  • To implement secure boot and firmware updates on the BLUENRG-M2SP, you need to use the STMicroelectronics' proprietary bootloader and firmware update tools. You can find more information on the STMicroelectronics website.
  • The power consumption of the BLUENRG-M2SP in sleep mode is typically around 1.5 μA. However, this can vary depending on the specific application and usage scenario.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BLUENRG-M2SP Overview

Use the download button to access the BLUENRG-M2SP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BLUEN, or try a keyword search, such as Other Telecom ICs
