BM2LE250FJ-CE2 - ROHM Semiconductor

Description: Power Switch ICs - Power Distribution 2CH LOW SIDE SWITCH IC FOR 12V

Download BM2LE250FJ-CE2 Model

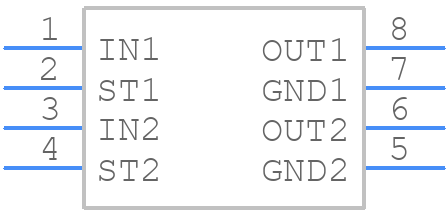

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BM2LE250FJ-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP-J8
click to zoom
3D Models
BM2LE250FJ-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SOP-J8
click to zoom

BM2LE250FJ-CE2 Details

  • Manufacturer Part Number:

    BM2LE250FJ-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

BM2LE250FJ-CE2 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for the device. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. ROHM also recommends using a thermistor or thermocouple to monitor the temperature and adjust the operating conditions accordingly.
  • ROHM recommends soldering the BM2LE250FJ-CE2 using a reflow soldering process with a peak temperature of 260°C (500°F) for 10-30 seconds. The device is also compatible with wave soldering, but the temperature should not exceed 250°C (482°F) for 5-10 seconds.
  • To prevent damage during storage and shipping, ROHM recommends storing the devices in their original packaging, away from direct sunlight and moisture. The devices should be handled with anti-static precautions, such as using an anti-static wrist strap or mat, to prevent electrostatic discharge (ESD) damage.
  • ROHM recommends performing visual inspections, electrical testing, and environmental testing (such as temperature cycling and humidity testing) to ensure the device meets the specified requirements. Additionally, consider using automated testing equipment, such as a flying probe tester or an in-circuit tester, to reduce testing time and improve accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BM2LE250FJ-CE2 Overview

Use the download button to access the BM2LE250FJ-CE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BM2LE, or try a keyword search, such as Peripheral Drivers
