BM2P121X-Z - ROHM Semiconductor

Description: Switching Voltage Regulators NON-ISOLATED TYPE PWM DC/DC

Download BM2P121X-Z Model

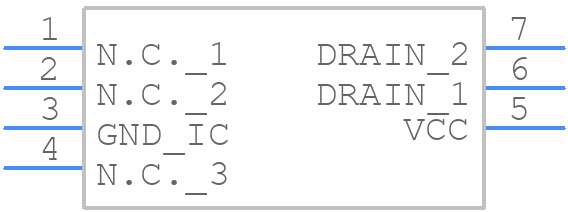

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BM2P121X-Z - ROHM Semiconductor PCB footprint - Other - Other - BM2P121X-Z-2
click to zoom
3D Models
BM2P121X-Z - ROHM Semiconductor  - 3D model - Other - BM2P121X-Z-2
click to zoom

BM2P121X-Z Details

  • Manufacturer Part Number:

    BM2P121X-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8/7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-07-05

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    12.96 V

  • Input Voltage-Min:

    9.5 V

  • JESD-30 Code:

    R-PDIP-T7

  • Length:

    9.27 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7/8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    12 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    65 kHz

  • Technology:

    MOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm
