BM2P135TF-E2 - ROHM Semiconductor

BM2P135TF-E2 Details

• Manufacturer Part Number:

  BM2P135TF-E2

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

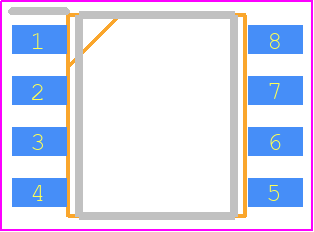

• Package Description:

  SOP-8

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2017-03-01

• Manufacturer:

  ROHM Semiconductor

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  14.05 V

• Input Voltage-Min:

  10.6 V

• JESD-30 Code:

  R-PDSO-G8

• Length:

  5 mm

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Seated Height-Max:

  1.71 mm

• Surface Mount:

  YES

• Switching Frequency-Max:

  100 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm
