ROHM recommends a thermal pad size of at least 2mm x 2mm with multiple vias to the ground plane to ensure efficient heat dissipation. A thermal resistance of 10°C/W or less is recommended.
To ensure SOA, monitor the device's voltage, current, and temperature. Use a voltage regulator to maintain a stable input voltage, and implement overcurrent protection to prevent excessive current. Also, ensure the device is properly heatsinked to maintain a safe junction temperature.
ROHM recommends using a low-ESR ceramic capacitor with a value of 4.7μF to 10μF, depending on the specific application requirements. The capacitor should be placed as close to the device as possible to minimize noise and ripple.
To troubleshoot output voltage issues, check the input voltage, output load, and feedback resistors. Ensure the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly configured. Also, verify that the device is properly heatsinked and not overheating.
During startup, the device has a soft-start feature that ramps up the output voltage to prevent inrush currents. During shutdown, the device's output voltage decays rapidly to prevent back-EMF damage. Ensure that the input voltage is stable and the output load is properly discharged during shutdown.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BM2SC123FP2-LBZE2 Overview

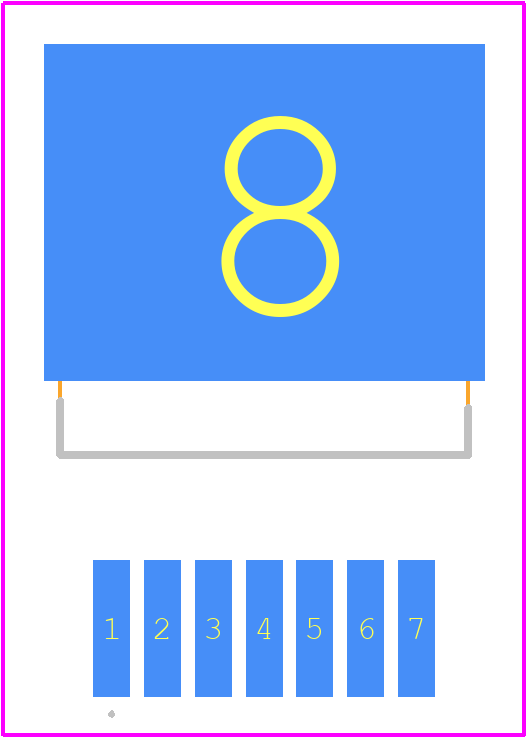

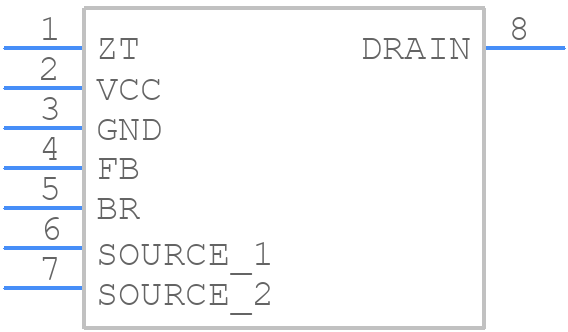

Use the download button to access the BM2SC123FP2-LBZE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BM2SC,
or try a keyword search, such as Switching Regulator or Controllers
