ROHM provides a recommended PCB layout in the application note AN1194, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, current, and ripple requirements. ROHM recommends using a low-ESR capacitor with a voltage rating of at least 1.5 times the maximum input voltage. A minimum capacitance of 10uF is recommended, but the optimal value may vary depending on the specific application.
The BM60054AFV-CE2 has a maximum ambient temperature rating of 85°C, but it can operate up to 105°C with derating. Refer to the datasheet for detailed thermal derating information.
Yes, the BM60054AFV-CE2 is AEC-Q100 qualified, making it suitable for automotive and high-reliability applications. However, it's essential to follow the recommended design guidelines and testing procedures to ensure compliance with the specific application requirements.
ROHM provides a troubleshooting guide in the application note AN1195, which covers common issues, diagnostic techniques, and corrective actions. Additionally, engineers can consult the datasheet and contact ROHM's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BM60054AFV-CE2 Overview

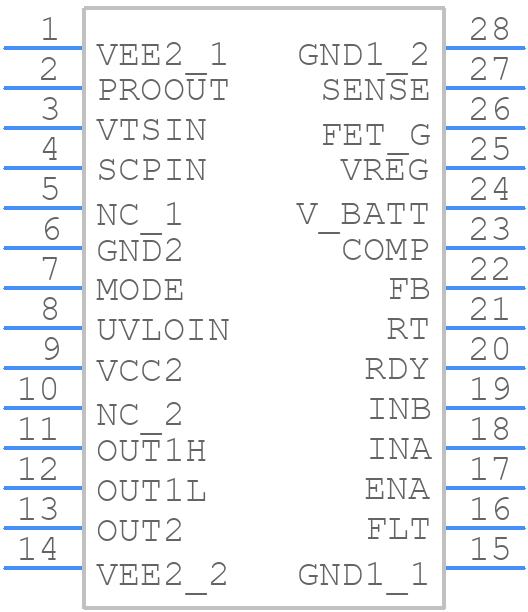

Use the download button to access the BM60054AFV-CE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BM600,
or try a keyword search, such as MOSFET Drivers
