ROHM provides a recommended PCB layout in the application note AN1191, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The input capacitor selection depends on the input voltage, output voltage, and output current. ROHM recommends using a low-ESR ceramic capacitor with a value between 1uF to 10uF, and a voltage rating of at least 1.5 times the input voltage.
The BM6242FS-E2 is rated for operation up to 105°C ambient temperature, but ROHM recommends derating the output current and voltage to ensure reliable operation above 85°C.
ROHM provides a troubleshooting guide in the application note AN1191, which covers common issues such as output voltage regulation, oscillation, and overcurrent protection. Additionally, engineers can use oscilloscopes and voltage meters to measure key signals and identify the root cause of the issue.
Yes, the BM6242FS-E2 is compatible with lead-free soldering processes, and ROHM recommends following the JEITA ED-4701 standard for lead-free soldering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BM6242FS-E2 Overview

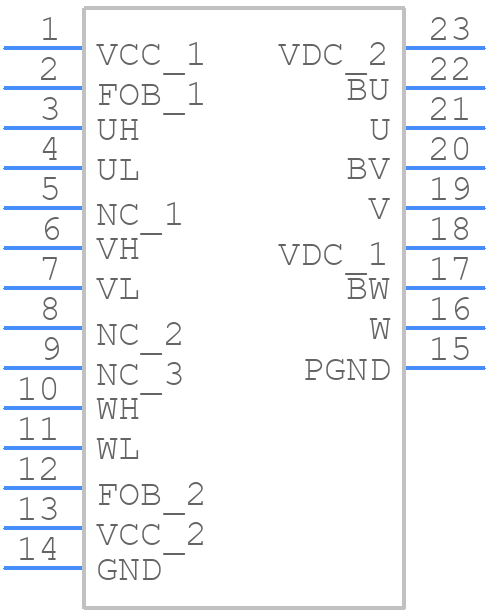

Use the download button to access the BM6242FS-E2 schematic symbol and PCB footprint.
