BM6246FS-E2 - ROHM Semiconductor

BM6246FS-E2 Details

• Manufacturer Part Number:

  BM6246FS-E2

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

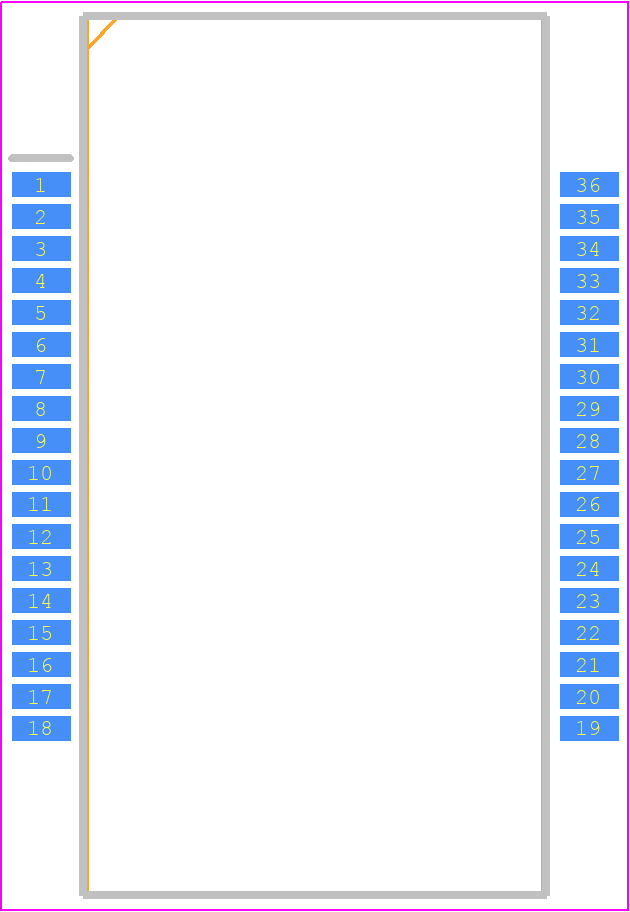

• Package Description:

  SSOP-54/36

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  17 Weeks

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  9.2

• Additional Feature:

  ALSO REQUIRES 15V POWER SUPPLY

• Analog IC - Other Type:

  3-PHASE BRUSHLESS DC MOTOR CONTROLLER

• JESD-30 Code:

  R-PDSO-G36

• Length:

  22 mm

• Number of Functions:

  1

• Number of Terminals:

  36

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  4 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Seated Height-Max:

  2.4 mm

• Supply Voltage-Max (Vsup):

  400 V

• Supply Voltage-Nom (Vsup):

  310 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Width:

  11.4 mm
