ROHM provides a recommended PCB layout in the application note AN12242, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The input capacitor selection depends on the input voltage, output voltage, and output current. ROHM recommends using a low-ESR ceramic capacitor with a value between 1uF to 10uF, and a voltage rating of at least 1.5 times the input voltage.
The BM6249FS-E2 is rated for operation up to 105°C ambient temperature, but ROHM recommends derating the output current and voltage to ensure reliable operation above 85°C.
ROHM provides a troubleshooting guide in the application note AN12243, which covers common issues such as output voltage regulation, oscillation, and overcurrent protection. It's recommended to check the input voltage, output voltage, and output current, as well as the PCB layout and component selection.
Yes, the BM6249FS-E2 is compatible with lead-free soldering processes, and ROHM recommends following the JEITA ED-4701 standard for lead-free soldering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BM6249FS-E2 Overview

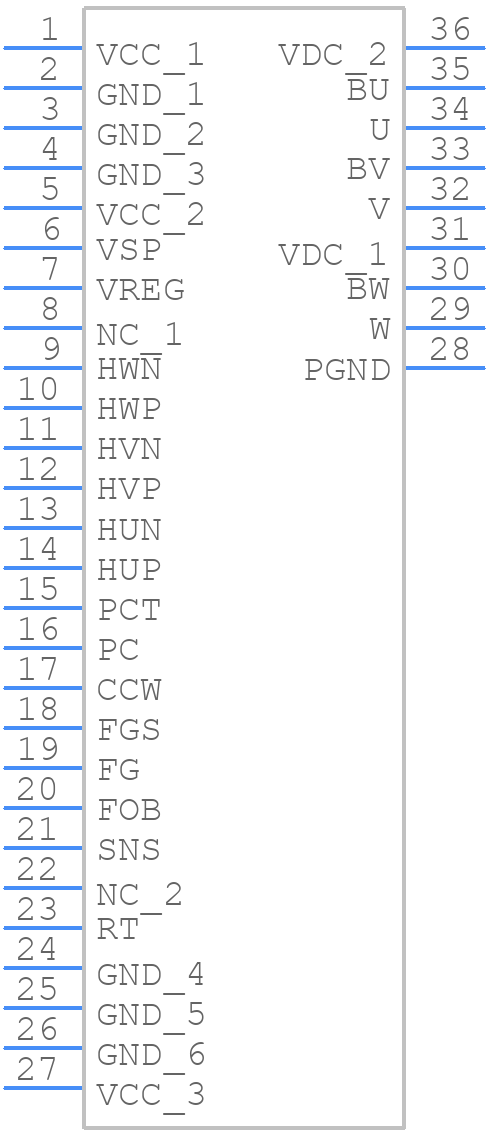

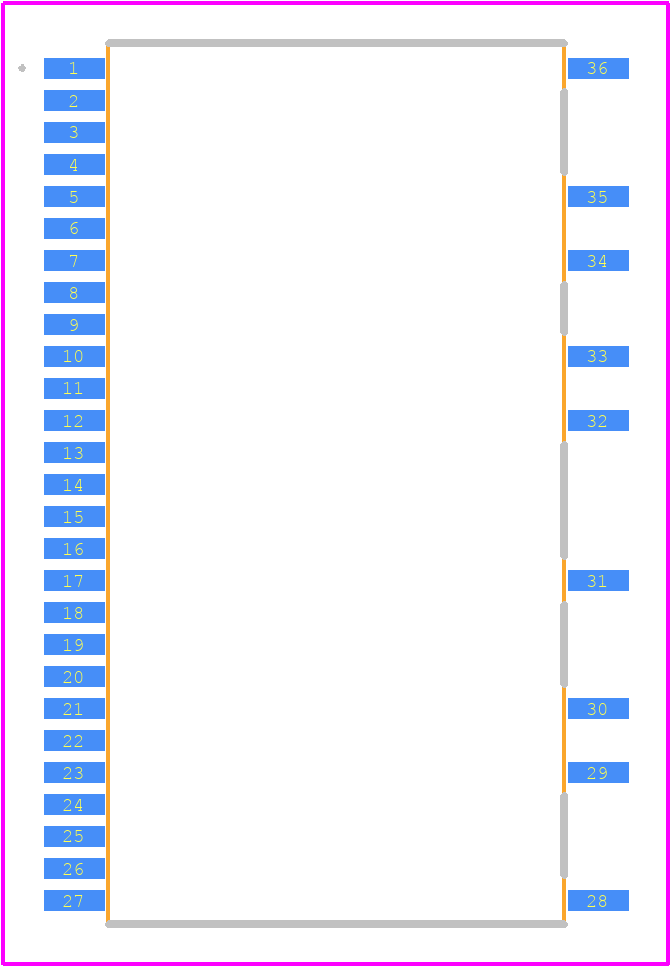

Use the download button to access the BM6249FS-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BM624,
or try a keyword search, such as Motion Control Electronics
