BM64SPKS1MC2-0002AA - Microchip

Description: Bluetooth Modules - 802.15.1 Bluetooth 5 Stereo Audio/Low Energy with Flash, I2S, Class-2, with shield, PCB antenna

Download BM64SPKS1MC2-0002AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

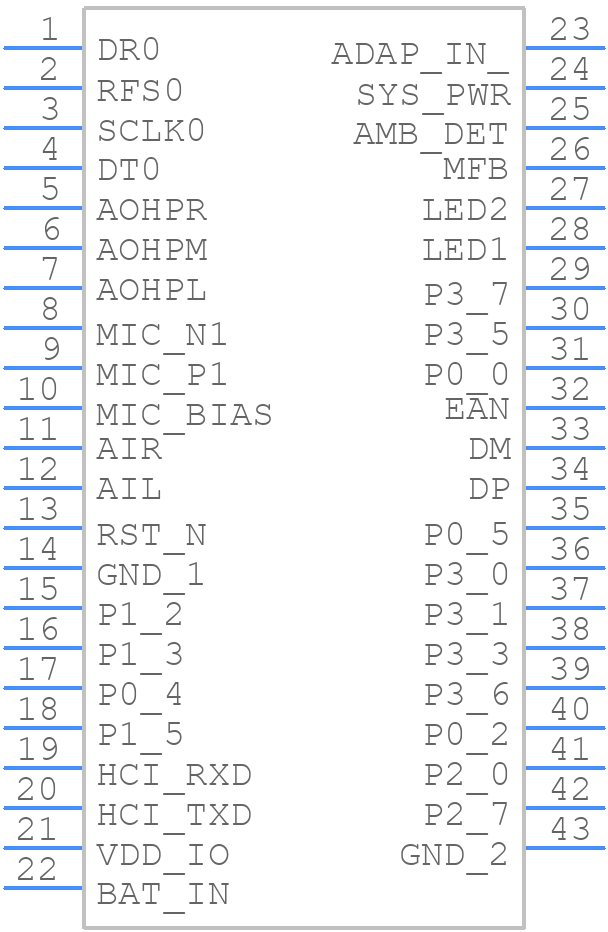

BM64SPKS1MC2-0002AA - Microchip - PCB symbol
click to zoom
PCB Footprints

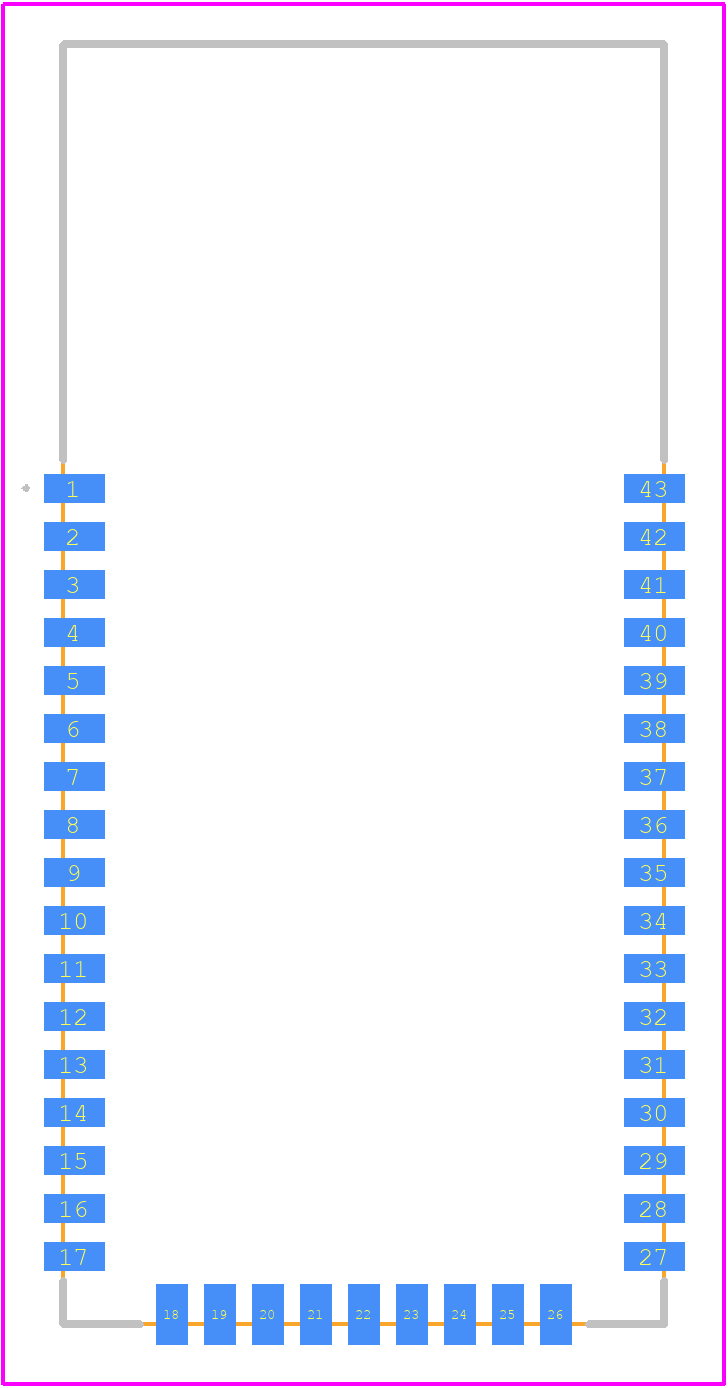

BM64SPKS1MC2-0002AA - Microchip PCB footprint - Other - Other - BM64SPKS1MC2-0002AA-1
click to zoom
3D Models
BM64SPKS1MC2-0002AA - Microchip - 3D model - Other - BM64SPKS1MC2-0002AA-1
click to zoom

BM64SPKS1MC2-0002AA Details

  • Manufacturer Part Number:

    BM64SPKS1MC2-0002AA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-43

  • Pin Count:

    43

  • Manufacturer Package Code:

    MODULE-43

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Additional Feature:

    ALSO AVAILABLE 5V SUPPLY-NOM FOR ADAPTER, SEATED HGT-NOM

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-XXMA-N43

  • Length:

    32 mm

  • Number of Functions:

    1

  • Number of Terminals:

    43

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,43LEAD

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.5 mm

  • Supply Voltage-Max (Vsup):

    4.2 V

  • Supply Voltage-Min (Vsup):

    3.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.2 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    15 mm

BM64SPKS1MC2-0002AA Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a shielded cable, ensure proper grounding, and implement error-checking mechanisms such as CRC or checksum in the communication protocol. Also, consider using a common mode choke or ferrite bead to filter out noise.
  • The maximum operating temperature range for the BM64SPKS1MC2-0002AA is -40°C to +85°C. However, it's recommended to operate within -20°C to +70°C for optimal performance and reliability.
  • Yes, the BM64SPKS1MC2-0002AA is suitable for battery-powered devices. It has a low power consumption of 12.5mA in receive mode and 30mA in transmit mode. However, consider using a low-dropout regulator and power-saving techniques to minimize power consumption.
  • Implement antenna diversity by connecting two antennas to the BM64SPKS1MC2-0002AA's antenna pins. Use a switch or a multiplexer to select the best antenna based on the received signal strength indicator (RSSI).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BM64SPKS1MC2-0002AA Overview

Use the download button to access the BM64SPKS1MC2-0002AA schematic symbol, PCB footprint, and 3D model.
