The BMC050 is a sensitive sensor and requires careful PCB layout and placement to minimize noise and interference. Bosch recommends a symmetrical layout, keeping the sensor away from high-current carrying traces and avoiding vias under the sensor. A dedicated ground plane and decoupling capacitors are also recommended.
The BMC050 requires calibration to ensure accurate readings. Bosch provides a calibration procedure in the datasheet, which involves applying a series of known magnetic fields and accelerations to the sensor. The calibration process can be done using a calibration tool or by implementing a calibration routine in the host system.
The BMC050 is specified to operate from -40°C to 85°C, but it can be extended to 105°C with reduced accuracy. It's essential to ensure the sensor is operated within the recommended temperature range to maintain accuracy and reliability.
The BMC050 has built-in high-pass and low-pass filters to reduce noise and aliasing. The filter settings can be configured through the sensor's registers. The high-pass filter helps remove gravity and other low-frequency noise, while the low-pass filter reduces high-frequency noise. The optimal filter settings depend on the specific application and noise environment.
The BMC050's power consumption varies depending on the operating mode and output data rate. In normal mode, the sensor consumes around 1.5 mA. To optimize power consumption, use the low-power mode, reduce the output data rate, and use the built-in power-down mode when the sensor is not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BMC050 Overview

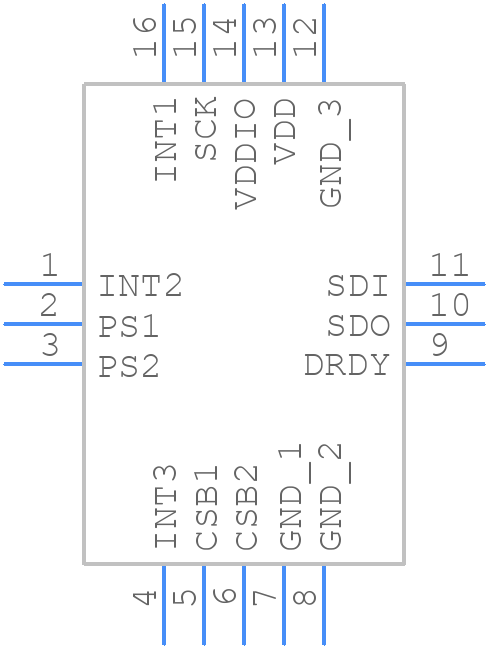

Use the download button to access the BMC050 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BMC05,
or try a keyword search, such as Other Sensors/Transducers
