- Part Number BMC156
- Manufacturer BOSCH
- Pin Count 12
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - LGA 2.2 x 2.2
- Released Date Jul 5, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BMC156 Details
-
Manufacturer Part Number:
BMC156
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
LGA-12
-
Manufacturer:
Bosch Sensortec
-
YTEOL:
0
-
Body Breadth:
2.2 mm
-
Body Height:
0.82 mm
-
Body Length or Diameter:
2.2 mm
-
Mounting Feature:
SURFACE MOUNT
-
Number of Terminals:
12
BMC156 Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the BMC156 is a 4-layer PCB with a dedicated ground plane and a separate power plane. This helps to reduce noise and ensure accurate sensor readings.
-
The BMC156 does not require calibration. It is a self-calibrating sensor that uses an internal algorithm to compensate for temperature and other environmental factors.
-
The BMC156 can operate in temperatures ranging from -40°C to 125°C. However, the accuracy of the sensor readings may degrade at extreme temperatures.
-
Yes, the BMC156 is designed to operate in humid environments. However, it's recommended to follow proper PCB design and assembly guidelines to prevent moisture ingress.
-
The BMC156's interrupt signals should be connected to a microcontroller or other processing unit that can handle the interrupt requests. The interrupt signals can be configured to trigger on specific events, such as changes in pressure or temperature.
Trust Checks
Community Provided
System Verified
Community Approved
BMC156 Overview

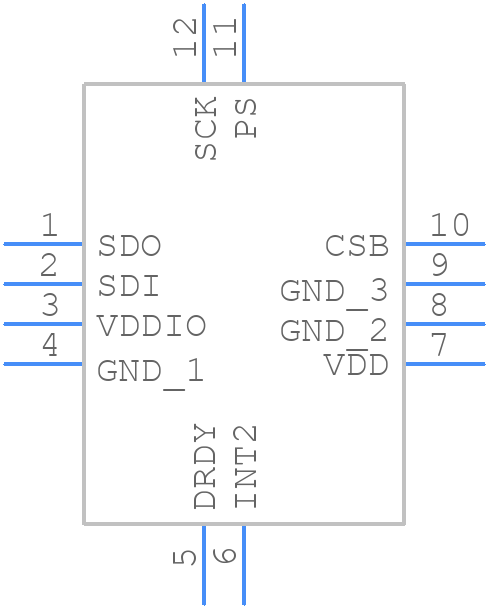

Use the download button to access the BMC156 schematic symbol, PCB footprint, and 3D model.
