BMD-300-A-R - u-blox

Description: Bluetooth Modules (802.15.1) Bluetooth Module Low Energy 5.0

Download BMD-300-A-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

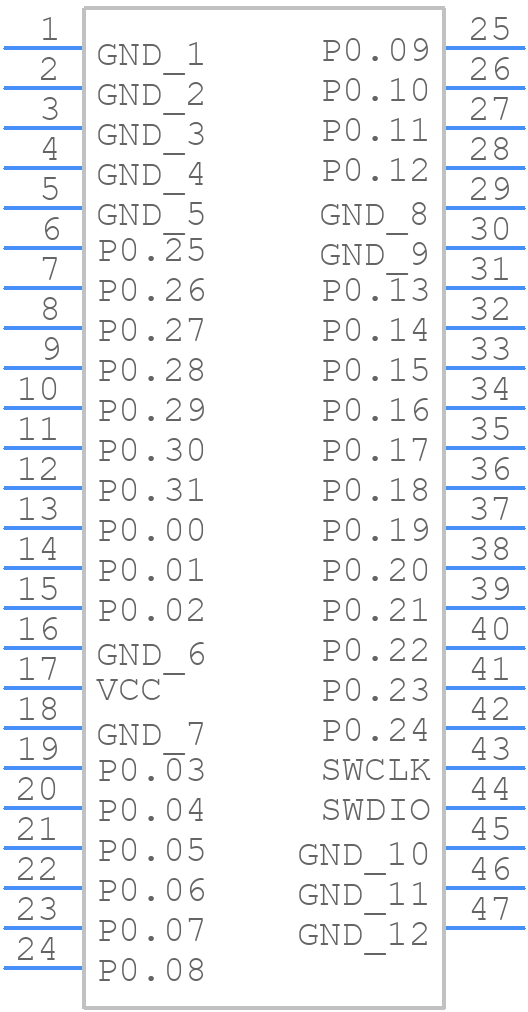

BMD-300-A-R - u-blox - PCB symbol
click to zoom
PCB Footprints
BMD-300-A-R - u-blox PCB footprint - Other - Other - BMD-300-A-R-4
click to zoom
3D Models
BMD-300-A-R - u-blox - 3D model - Other - BMD-300-A-R-4
click to zoom

BMD-300-A-R Details

  • Manufacturer Part Number:

    BMD-300-A-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-47

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2019-07-30

  • Manufacturer:

    u-blox AG

  • Data Rate:

    8000 Mbps

  • JESD-30 Code:

    R-XXMA-N47

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    47

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    9.8 mm

BMD-300-A-R Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply the power supply voltage (VCC) and then the backup battery voltage (VBACKUP). This ensures that the module's internal voltage regulators are properly initialized.
  • The BMD-300-A-R module can be configured using the u-blox UBX protocol. Send the appropriate UBX-CFG-GNSS command to configure the module for the desired GNSS system. Refer to the u-blox documentation for more information.
  • The maximum update rate of the BMD-300-A-R module is 18 Hz. However, the actual update rate may be limited by the host system's processing capabilities and the communication interface used (e.g. UART, SPI, I2C).
  • The BMD-300-A-R module has built-in antenna detection and switching capabilities. Use the UBX-CFG-ANT command to configure the antenna detection and switching settings. Refer to the u-blox documentation for more information.
  • The typical current consumption of the BMD-300-A-R module is around 50 mA during continuous navigation mode. However, this value may vary depending on the specific use case, GNSS system, and module configuration.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BMD-300-A-R Overview

Use the download button to access the BMD-300-A-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BMD-3, or try a keyword search, such as Other Telecom ICs

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
