The recommended PCB layout and thermal management for optimal performance can be found in the application note provided by Flex Ltd or through direct consultation with their technical support team. Generally, a 4-layer PCB with a solid ground plane and thermal vias is recommended, along with a heat sink and thermal interface material to ensure efficient heat dissipation.
To ensure the module's reliability and longevity in high-temperature environments, it's essential to follow the recommended operating temperature range, provide adequate cooling, and avoid thermal shocks. Additionally, conformal coating and encapsulation can help protect the module from moisture and contaminants.
The BMR4501002/020 requires a high-quality input power source with minimal ripple and noise. A recommended input filter, such as an LC filter or a pi filter, can help reduce electromagnetic interference (EMI) and ensure reliable operation. Consult the application note or technical support for specific filter design recommendations.
To troubleshoot and diagnose issues with the module, start by verifying the input power quality, checking for proper PCB layout and thermal management, and ensuring correct component selection and soldering. Use oscilloscopes and other diagnostic tools to measure output voltage, current, and efficiency. Consult the datasheet and application notes for specific troubleshooting guidelines.
When handling the BMR4501002/020, follow standard safety precautions for electronic components, including wearing anti-static wrist straps, using anti-static mats, and avoiding direct contact with the module's electrical pins. Ensure proper electrical isolation and follow safe soldering practices to prevent damage or electrical shock.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BMR4501002/020 Overview

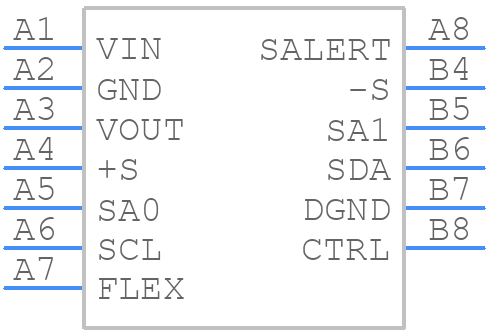

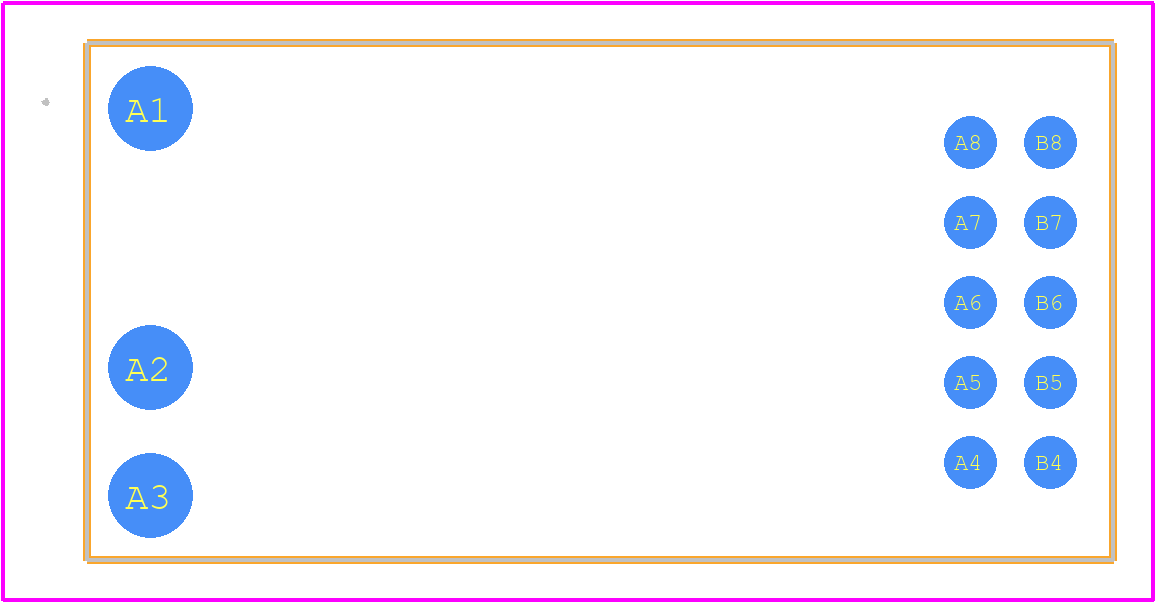

Use the download button to access the BMR4501002/020 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BMR45,
or try a keyword search, such as Power Supply Modules
