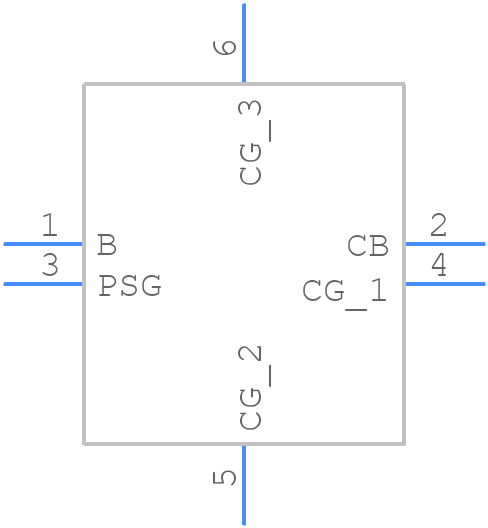

BNX022-01B - Murata Electronics

BNX022-01B Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and land pattern for the BNX022-01B?
  Murata provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance and minimize signal integrity issues.
• How do I handle the thermal management of the BNX022-01B?
  The BNX022-01B has a maximum junction temperature of 125°C. Ensure good airflow, use thermal vias, and consider heat sinks or thermal pads to maintain a safe operating temperature.
• What is the recommended soldering process for the BNX022-01B?
  Follow the JEDEC J-STD-020D.1 standard for reflow soldering, and ensure the peak temperature does not exceed 260°C. Hand soldering is not recommended due to the component's small size and thermal sensitivity.
• Can I use the BNX022-01B in a high-vibration or high-shock environment?
  While the BNX022-01B is designed to be robust, it's essential to evaluate the component's performance in your specific application. Consider using additional mechanical support or potting to ensure the component's reliability in high-vibration or high-shock environments.
• How do I troubleshoot issues with the BNX022-01B?
  Use a systematic approach to troubleshoot issues, starting with visual inspection, then moving to signal integrity analysis, and finally, using specialized tools like oscilloscopes or logic analyzers to identify the root cause of the problem.
