BP2G1+ - Mini-Circuits

Description: Signal Conditioning 2 Ways MMIC DC Pass Power Splitter, 1200 - 2000 MHz, 50 ohms

Download BP2G1+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

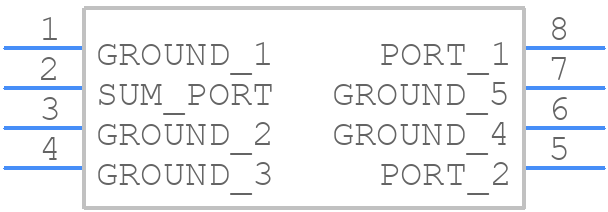

BP2G1+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
BP2G1+ - Mini-Circuits PCB footprint - Other - Other - BP2G1+-3
click to zoom
3D Models
BP2G1+ - Mini-Circuits - 3D model - Other - BP2G1+-3
click to zoom

BP2G1+ Details

  • Manufacturer Part Number:

    BP2G1+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    TR, 7 INCH: 1000

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    1.3 dB

  • Isolation-Min:

    10 dB

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2000 MHz

  • Operating Frequency-Min:

    1200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN SILVER OVER NICKEL

  • VSWR-Max:

    1.3
