BP4C+ - Mini-Circuits

Description: Power Divider, 4 Way-0 , 0.81 to 0.96 GHz, 50 ohms, SMT

Download BP4C+ Model

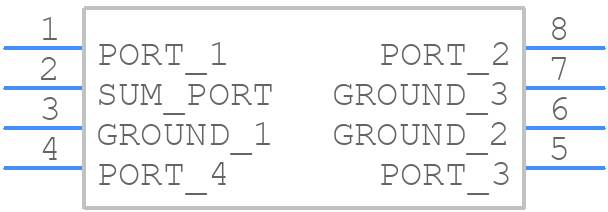

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

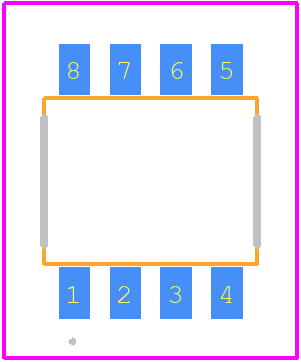

BP4C+ - Mini-Circuits PCB footprint - Other - Other - XX211_2022
click to zoom

BP4C+ Details

  • Manufacturer Part Number:

    BP4C+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0

  • Additional Feature:

    TR, 7 INCH: 1000

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    1.6 dB

  • Isolation-Min:

    17 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    960 MHz

  • Operating Frequency-Min:

    810 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Packing Method:

    TR, 13 INCH

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • VSWR-Max:

    1.35

BP4C+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint for BP4C+ in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching is critical for optimal performance. Mini-Circuits recommends using a pi-network or a T-network to match the BP4C+ to your system's impedance. You can use their online impedance matching tool or consult with their application engineers for guidance.
  • The maximum power handling of BP4C+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the device can handle up to 1W of continuous power. Exceeding this limit may result in reduced performance, reliability issues, or even damage to the device.
  • While the BP4C+ is rated for operation up to 85°C, it's essential to derate the power handling and consider the thermal resistance of the device when operating in high-temperature environments. Consult with Mini-Circuits' application engineers for guidance on high-temperature applications.
  • Common issues with BP4C+ include poor return loss, low gain, or high noise figure. To troubleshoot, check the PCB layout, impedance matching, and power supply quality. Consult Mini-Circuits' application notes and technical support resources for guidance on troubleshooting and debugging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BP4C+ Overview

Use the download button to access the BP4C+ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
