BP5048-15 - ROHM Semiconductor

Description: ROHM BP5048-15, AC-DC Converter 200mA, 14.5 → 16.5 V, 12-Pin, SIP

Download BP5048-15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

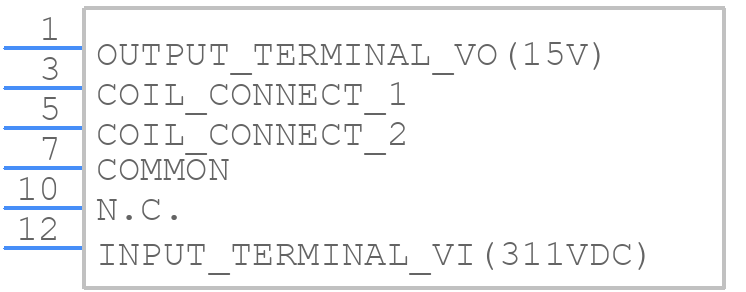

BP5048-15 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BP5048-15 - ROHM Semiconductor PCB footprint - Other - Other - BP5048-15-2
click to zoom
3D Models
BP5048-15 - ROHM Semiconductor - 3D model - Other - BP5048-15-2
click to zoom

BP5048-15 Details

  • Manufacturer Part Number:

    BP5048-15

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SFM

  • Package Description:

    SIP-12

  • Pin Count:

    12

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE
