BP5510-24 footprint, schematic symbol and 3D model by ROHM Semiconductor

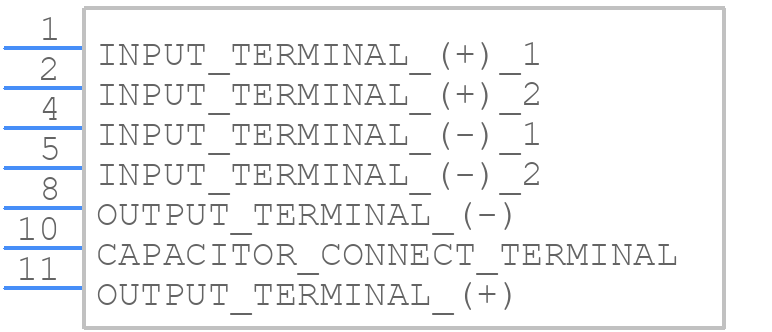

Symbol

click to zoom

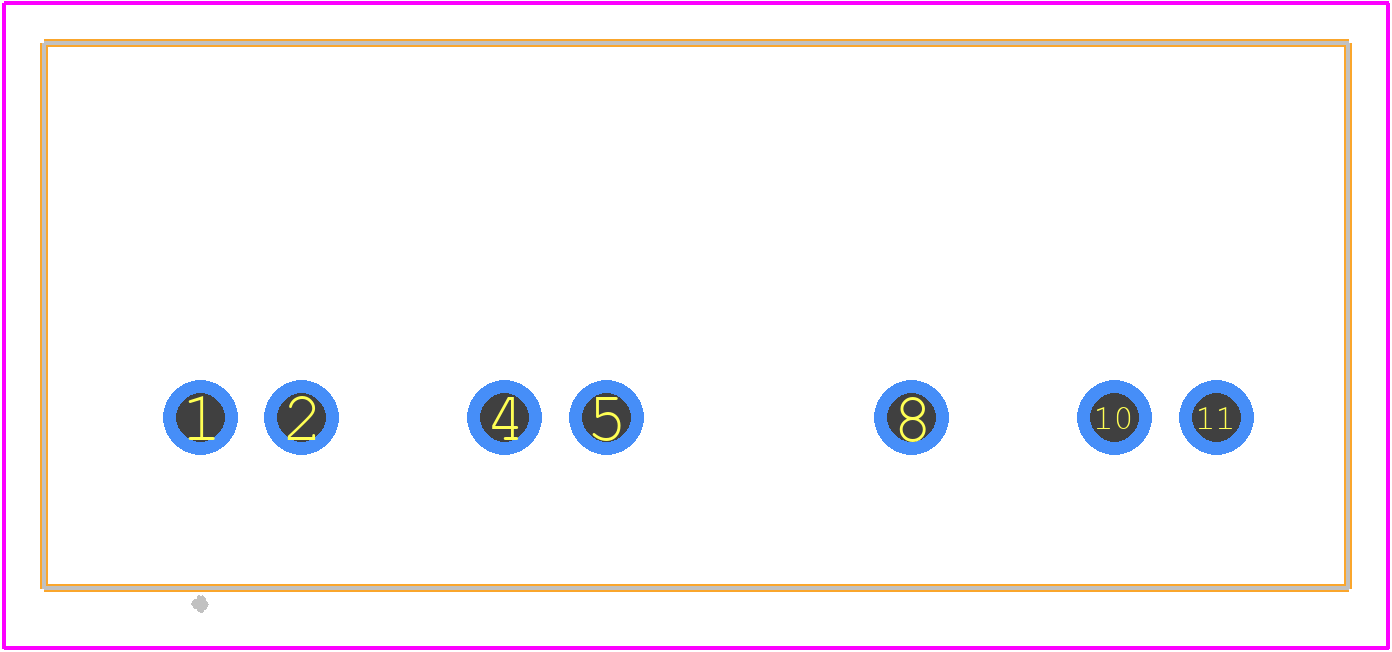

PCB Footprints

BP5510-24 - ROHM Semiconductor PCB footprint - Other - Other - 11-pin SIP

click to zoom

3D Models

BP5510-24 - ROHM Semiconductor - 3D model - Other - 11-pin SIP

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BP5510-24
Part Number BP5510-24
Manufacturer ROHM Semiconductor
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - 11-pin SIP
Released Date Jul 17, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BP5510-24 Details

Manufacturer Part Number:
BP5510-24
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
PACKAGE-11/7
ECCN Code:
EAR99
Manufacturer:
ROHM Semiconductor
YTEOL:
0
Additional Feature:
LG-MAX, WIDTH-MAX
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
13.2 V
Input Voltage-Min:
10.8 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-XSMA-T7
Length:
32.6 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
7
Operating Temperature-Max:
60 °C
Operating Temperature-Min:
-20 °C
Output Voltage-Max:
25.2 V
Output Voltage-Min:
22.8 V
Output Voltage-Nom:
24 V
Package Body Material:
UNSPECIFIED
Package Code:
SMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
24.2 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
4.8 W
Trim/Adjustable Output:
NO
Width:
13.6 mm

BP5510-24 Frequently Asked Questions (FAQs)

ROHM recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke and a 10uF capacitor for input filtering.
Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate in high-temperature environments. Also, follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
Although the recommended input voltage range is 3.3V to 5.5V, the BP5510-24 can withstand up to 6.5V for a short duration (less than 1 second) without damage. However, continuous operation above 5.5V is not recommended.
Yes, the BP5510-24 is suitable for battery-powered devices due to its low quiescent current (IQ) of 1.5mA. However, consider the device's power consumption and battery life requirements to ensure optimal performance.
Check the input voltage, output load, and PCB layout for any issues. Verify that the device is operated within its specified temperature range and that the recommended input and output capacitors are used. Consult ROHM's application notes and technical support resources for further guidance.
