BPF-A120+ - Mini-Circuits

Description: 120MHz Center Frequency Band Pass RF Filter (Radio Frequency) 40MHz Bandwidth 2.5dB 14-SMD Module

Download BPF-A120+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

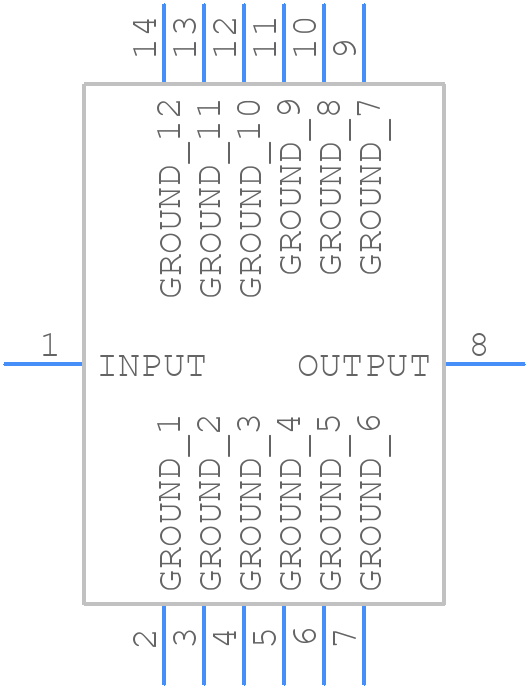

Symbol
BPF-A120+ - Mini-Circuits - PCB symbol
click to zoom

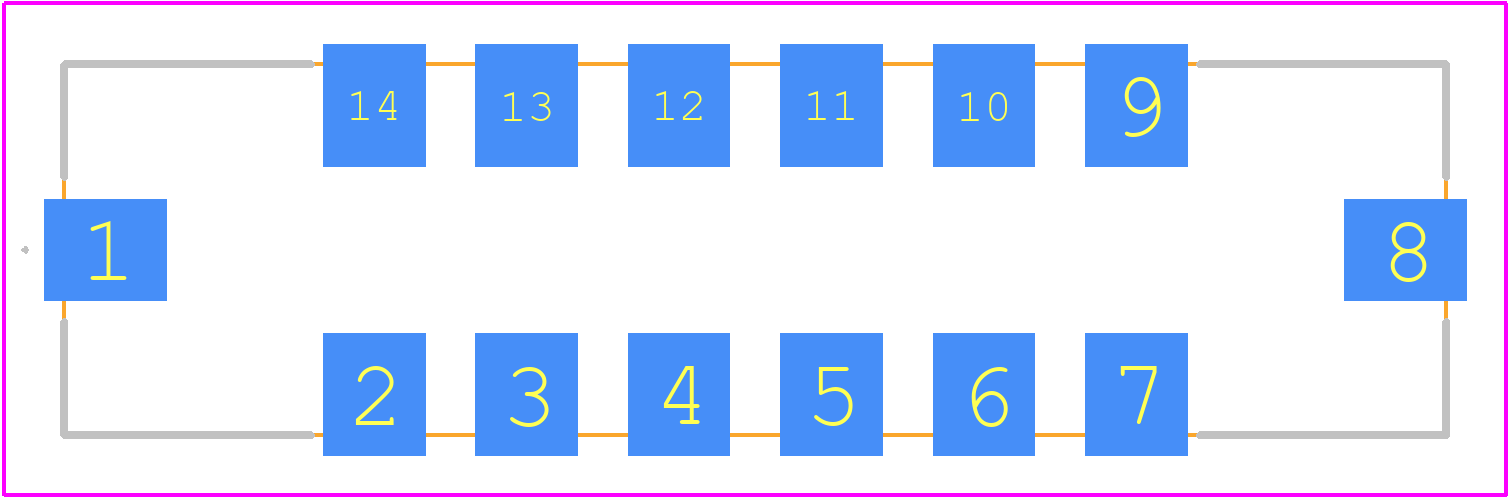

PCB Footprints
BPF-A120+ - Mini-Circuits PCB footprint - Other - Other - HQ1157_2025
click to zoom
3D Models
BPF-A120+ - Mini-Circuits - 3D model - Other - HQ1157_2025
click to zoom

BPF-A120+ Details

  • Manufacturer Part Number:

    BPF-A120+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.89

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    120 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    8.89 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2.5 dB

  • Length:

    34.54 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.92

  • Width:

    9.27 mm

BPF-A120+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the BPF-A120+ is 1 watt. Exceeding this power limit may cause damage to the device or affect its performance.
  • The BPF-A120+ is designed to operate in a temperature range of -40°C to +85°C. However, it's recommended to derate the power handling at high temperatures. Additionally, the device is not hermetically sealed, so it's not suitable for use in extremely humid or wet environments.
  • The typical group delay of the BPF-A120+ is around 10-20 ns, which is relatively low for a band-pass filter. This makes it suitable for applications where signal delay is critical.
  • The BPF-A120+ is designed for use in a 50-ohm system. It's impedance-matched to 50 ohms, making it suitable for most RF and microwave applications.
  • The return loss of the BPF-A120+ is typically around 15-20 dB, which is relatively high. This means that the device has a good impedance match and will minimize signal reflections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BPF-A120+ Overview

Use the download button to access the BPF-A120+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BPF-A, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
