BPF-B48+ footprint, schematic symbol and 3D model by Mini-Circuits

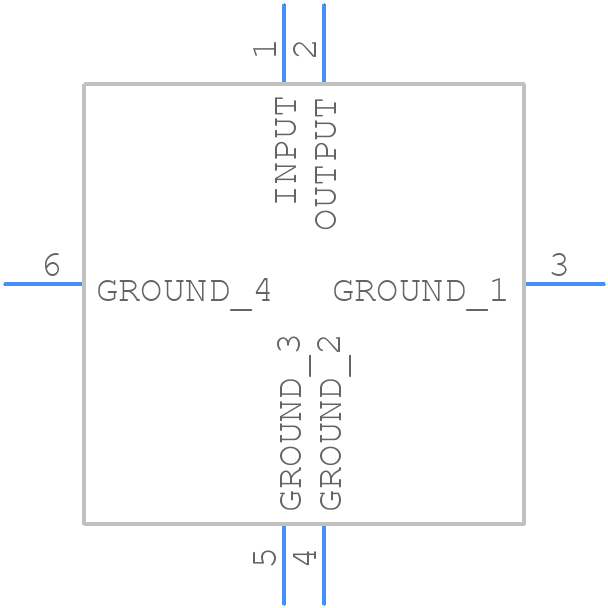

Symbol

click to zoom

PCB Footprints

BPF-B48+ - Mini-Circuits PCB footprint - Other - Other - HZ1198_2026-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BPF-B48+
Part Number BPF-B48+
Manufacturer Mini-Circuits
Pin Count 6
Part Category Filter
Package Category Other
Footprint Name Other - HZ1198_2026-2
Released Date Aug 23, 2026
Last Modified Date Aug 23, 2026 12:04 PM UTC
Pinout / Pin List Click Here (Member Only)

BPF-B48+ Details

Manufacturer Part Number:
BPF-B48+
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CASE HZ1198, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
6
Attenuation Frequency-Max:
2400 MHz
Attenuation Frequency-Min:
41 MHz
Attenuation@Freq-Max:
40 dB
Attenuation@Freq-Min:
20 dB
Average Input Power:
0.15 W
Center or Cutoff Frequency (fo/fc):
48 MHz
Filter Type:
BAND PASS FILTER
Height:
5.59 mm
Input Impedance:
50 OHM
Insertion Loss-Max:
4 dB
Length:
20.98 mm
Mounting Type:
SURFACE MOUNT
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Impedance:
50 OHM Ω
VSWR:
1.2
Width:
11.99 mm

BPF-B48+ Frequently Asked Questions (FAQs)

Mini-Circuits recommends a 50-ohm microstrip line with a 0.5mm width and a 0.8mm spacing from the filter to the PCB edge. A solid ground plane is also recommended to minimize radiation losses.
The BPF-B48+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the filter's impedance to your system's impedance.
The BPF-B48+ can handle up to 10W of continuous power. However, it's recommended to derate the power handling based on the operating frequency and temperature to ensure reliable operation.
The BPF-B48+ is designed for commercial applications and can operate in temperatures ranging from -40°C to 85°C. However, for harsh environments, consider using a filter with a more rugged design and higher reliability, such as the BPF-B48+H model.
Use a vector network analyzer (VNA) to measure the filter's S-parameters and compare them to the datasheet specifications. Check for signs of damage, such as cracks or burn marks, and ensure proper PCB layout and impedance matching.
