BPF-F1950+ Frequently Asked Questions (FAQs)

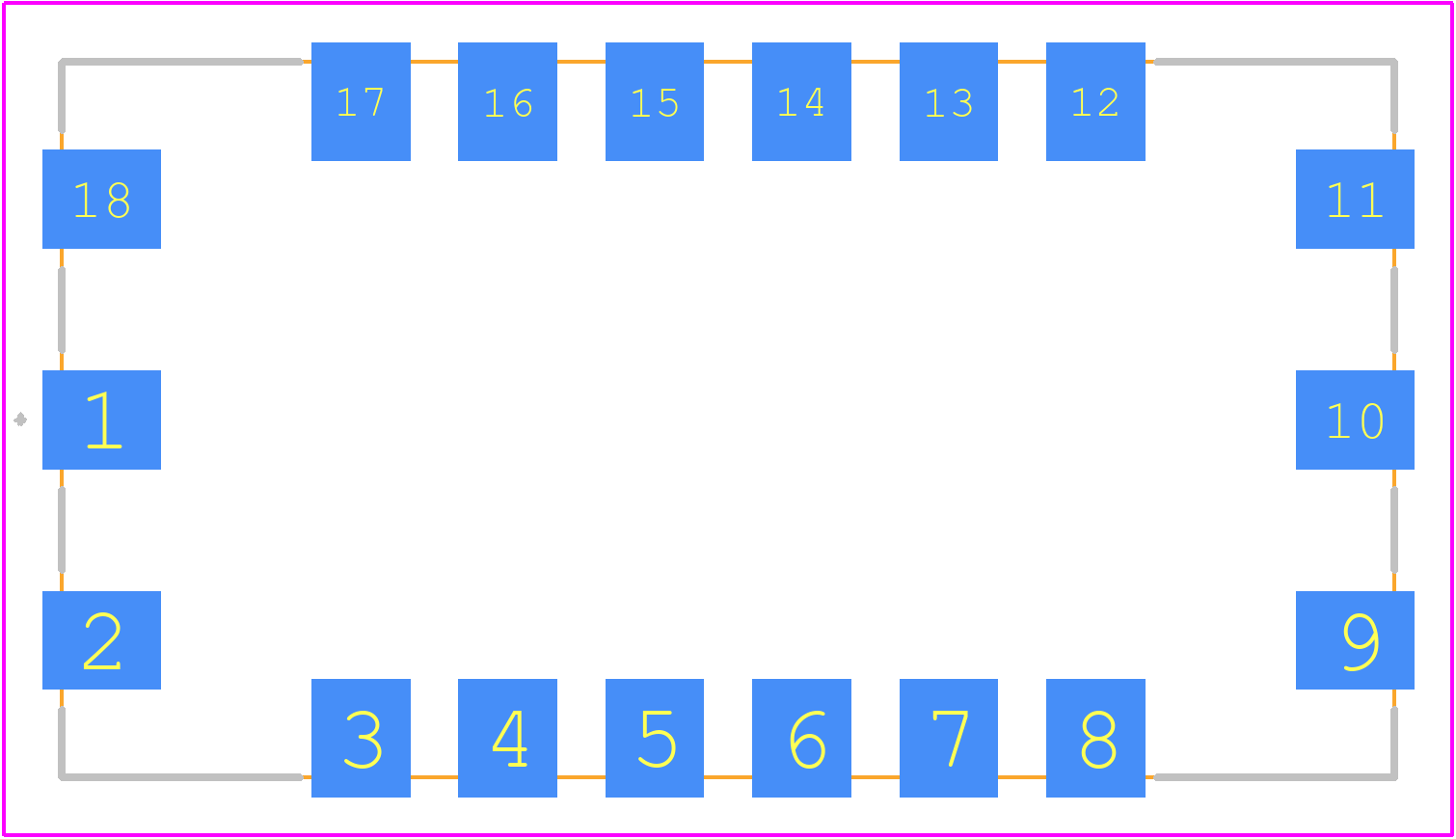

• What is the recommended PCB layout and footprint for the BPF-F1950+?
  Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
• How do I impedance match the BPF-F1950+ to my system?
  The BPF-F1950+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the filter's input and output impedance to your system's impedance. You can use simulation tools like ADS or AWR to design the matching network.
• What is the maximum power handling of the BPF-F1950+?
  The maximum power handling of the BPF-F1950+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the filter can handle up to 1W of continuous power. It's essential to derate the power handling based on the operating frequency, temperature, and other environmental factors.
• Can I use the BPF-F1950+ in a high-reliability or space-constrained application?
  The BPF-F1950+ is a commercial-grade component, and its reliability and ruggedness may not meet the requirements of high-reliability or space-constrained applications. Mini-Circuits offers other filter products that are specifically designed for these types of applications, such as their MIL-STD-883 compliant filters.
• How do I troubleshoot issues with the BPF-F1950+?
  To troubleshoot issues with the BPF-F1950+, start by verifying the filter's input and output impedance, and ensuring that the filter is properly impedance matched to your system. Use a vector network analyzer (VNA) to measure the filter's frequency response and identify any anomalies. Consult Mini-Circuits' application notes and technical support resources for further guidance.
