BPF-V300+ - Mini-Circuits

Description: Signal Conditioning Lumped LC Band Pass Filter, 230 - 370 MHz, 50 ohms

Download BPF-V300+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

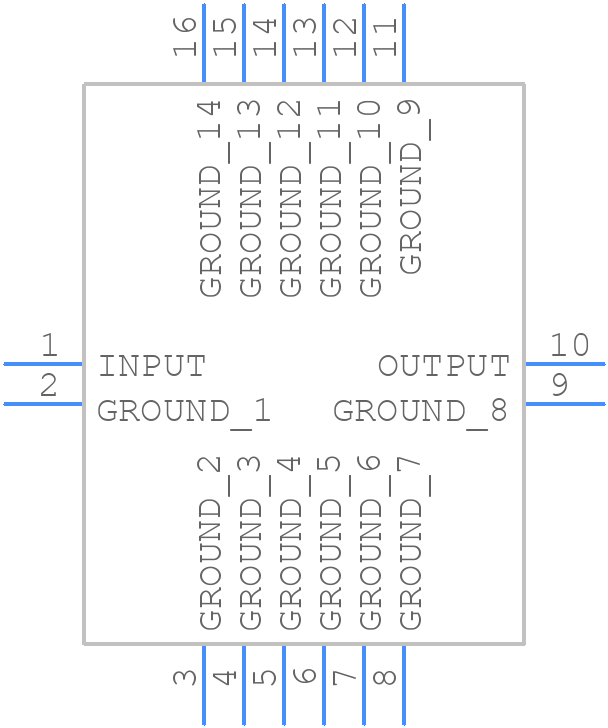

BPF-V300+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints

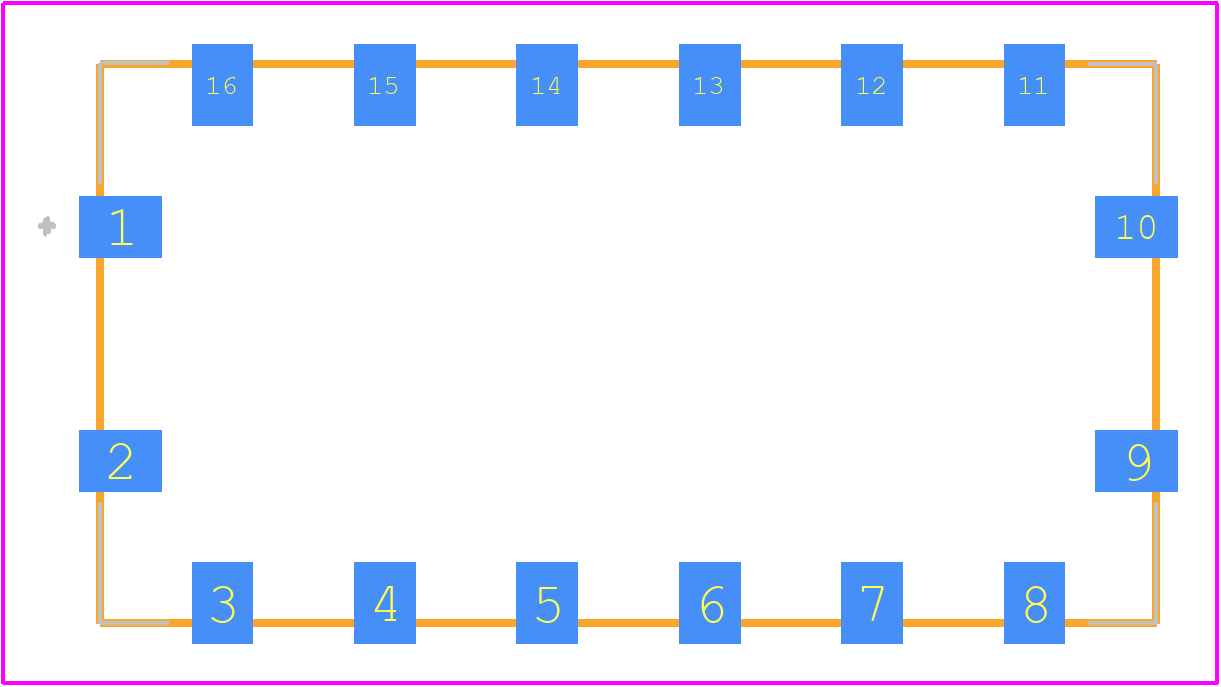

BPF-V300+ - Mini-Circuits PCB footprint - Other - Other - BPF-V300+-3
click to zoom
3D Models
BPF-V300+ - Mini-Circuits - 3D model - Other - BPF-V300+-3
click to zoom

BPF-V300+ Details

  • Manufacturer Part Number:

    BPF-V300+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    300 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    5.08 mm

  • Input Connector:

    SMA FEMALE

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • Length:

    26.42 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Connector:

    SMA FEMALE

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 13 INCH

  • VSWR:

    1.2

  • Width:

    13.97 mm

BPF-V300+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the BPF-V300+ is 1 watt. Exceeding this power limit may cause damage to the device or affect its performance.
  • The BPF-V300+ is designed to operate from -40°C to +85°C. While it can tolerate high temperatures, its performance may degrade above 70°C. It's recommended to derate the power handling accordingly.
  • The BPF-V300+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network with capacitors and inductors to match the filter's impedance to your system's impedance.
  • The typical insertion loss of the BPF-V300+ is around 2-3 dB. This value may vary depending on the specific frequency and operating conditions.
  • The BPF-V300+ is not designed for switching applications. It's a passive filter, and rapid switching may cause damage or affect its performance. If you need a switchable filter, consider using a different product or consulting with Mini-Circuits' application engineers.
