The recommended land pattern for BPR58C33LK is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.
While BPR58C33LK has a rated operating temperature range of -55°C to 150°C, it's essential to consider the derating curve and ensure that the component does not exceed its maximum power rating at elevated temperatures. Consult with a thermal expert or perform thermal simulations to ensure safe operation.
To prevent electrostatic discharge (ESD) damage, handle BPR58C33LK with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that the component is stored in a dry, ESD-controlled environment, and follow proper soldering and assembly procedures.
The recommended soldering profile for BPR58C33LK is a reflow profile with a peak temperature of 260°C, a dwell time above 220°C of 20-30 seconds, and a ramp-up rate of 3°C/second. Consult the datasheet and industry standards (e.g., IPC-J-STD-020) for more detailed guidance.
While BPR58C33LK has a moisture sensitivity level (MSL) of 1, it's still essential to consider the environmental conditions in which the component will operate. Apply conformal coatings or potting compounds to protect the component from moisture and corrosion, and ensure that the operating environment is within the recommended specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BPR58C33LK Overview

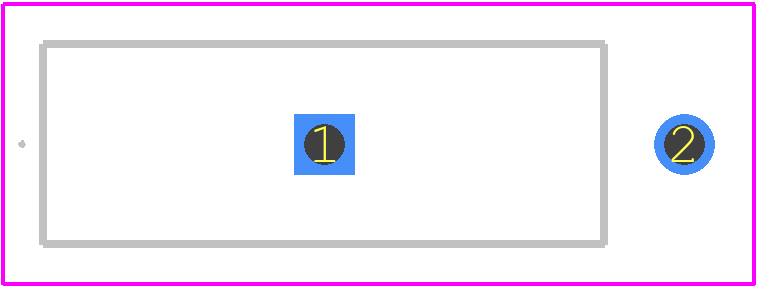

Use the download button to access the BPR58C33LK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BPR58,
or try a keyword search, such as Metal Strip Resistor
