Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the sense lines short and away from noise sources, using a solid ground plane, and minimizing the distance between the battery and the IC.
Calibration involves setting the capacity of the battery and the gain of the fuel gauge. TI provides a calibration procedure in the datasheet, which involves measuring the battery's capacity and adjusting the gain accordingly. You can also use TI's Fuel Gauge Calibration Tool to simplify the process.
The accuracy of the fuel gauge depends on various factors, including the quality of the battery, the calibration process, and the operating conditions. According to the datasheet, the BQ2019PWG4 has an accuracy of ±5% over the entire operating range, but this can be improved with proper calibration and compensation for temperature and aging effects.
The BQ2019PWG4 has a built-in mechanism to compensate for battery aging and capacity loss. It uses a learning algorithm to adapt to changes in the battery's capacity over time, ensuring that the fuel gauge remains accurate. However, it's essential to follow proper calibration and maintenance procedures to ensure optimal performance.
Yes, the BQ2019PWG4 is designed to work with various battery chemistries, including Li-ion, NiMH, and Lead-Acid. However, you may need to adjust the calibration and compensation settings depending on the specific battery chemistry and characteristics.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2019PWG4 Overview

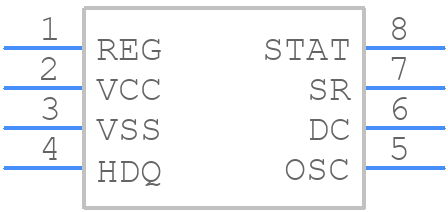

Use the download button to access the BQ2019PWG4 schematic symbol, PCB footprint, and 3D model.
