The recommended layout and placement for the BQ24130RHLT involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the TI application note 'Layout and Placement Guidelines for the BQ24130RHLT' for more details.
To optimize the charging profile for your specific battery, you can use the BQ24130RHLT's programmable charging parameters such as the charge voltage, charge current, and termination current. You can also use the device's built-in battery monitoring features to monitor the battery's state of charge, voltage, and temperature. Refer to the TI application note 'Optimizing the Charging Profile for the BQ24130RHLT' for more details.
The BQ24130RHLT has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to provide adequate thermal dissipation. This can be achieved by using a heat sink, increasing the PCB's thermal conductivity, and minimizing the device's power dissipation. Refer to the TI application note 'Thermal Considerations for the BQ24130RHLT' for more details.
The BQ24130RHLT has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. The device will automatically disconnect the input power when the input voltage exceeds the OVP threshold. You can also use external components to implement a custom OVP circuit. Refer to the TI application note 'Implementing Overvoltage Protection with the BQ24130RHLT' for more details.
To minimize electromagnetic interference (EMI) and ensure electromagnetic compatibility (EMC), it's essential to follow proper PCB layout and design practices. This includes using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. Refer to the TI application note 'EMI and EMC Considerations for the BQ24130RHLT' for more details.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24130RHLT Overview

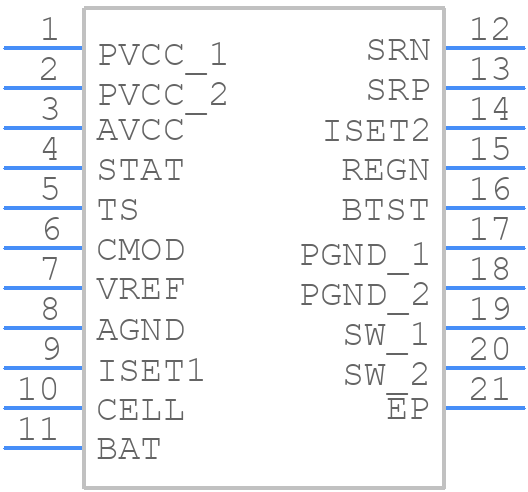

Use the download button to access the BQ24130RHLT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Switching Regulator or Controllers
