BQ24630RGER - Texas Instruments

Description: Stand-Alone Synchronous Switch-Mode Lithium Phosphate Battery Charger with System Power Selector and Low Iq

Download BQ24630RGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

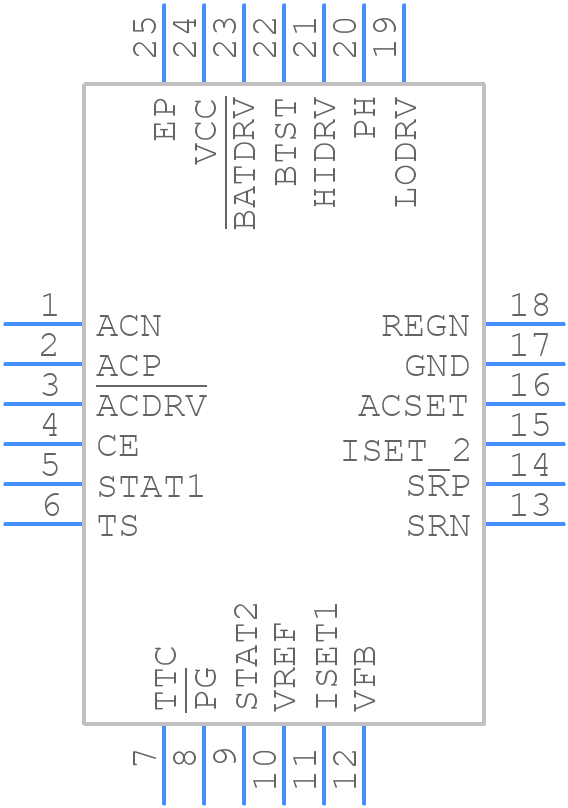

BQ24630RGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24630RGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B
click to zoom
3D Models
BQ24630RGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B
click to zoom

BQ24630RGER Details

  • Manufacturer Part Number:

    BQ24630RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    20 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    345 kHz

  • Technology:

    NMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24630RGER Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and wide, and use thermal vias to dissipate heat. Refer to the TI application note 'PCB Layout Guidelines for Switching Regulators' for more information.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (e.g., 1-10 μH). Consider the inductor's physical size, core material, and operating frequency. TI's 'Inductor Selection Guide' can help with the selection process.
  • The BQ24630RGER can handle input voltages up to 40 V, but it's recommended to keep the input voltage below 30 V to ensure reliable operation and minimize stress on the device.
  • Use the OCSET pin to set the overcurrent threshold. Connect a resistor (ROC) from OCSET to GND to set the threshold. The device will latch off when the current exceeds the set threshold. You can also use an external circuit to implement more advanced overcurrent protection schemes.
  • Yes, the BQ24630RGER can be used in a synchronous rectification configuration to improve efficiency. However, this requires additional external components and careful PCB layout to minimize parasitic inductances and ensure proper operation.
