Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency switching converters, such as keeping the power stage components close together, using a solid ground plane, and minimizing trace lengths and widths.
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. Texas Instruments provides a list of recommended inductors in the datasheet, but it's also recommended to consult with inductor manufacturers and consider factors such as inductor core material, size, and saturation current.
The BQ24747RHDT is rated for operation up to 105°C ambient temperature, but the maximum ambient temperature for reliable operation depends on the specific application and the thermal design of the system. It's recommended to consult with Texas Instruments or a thermal expert to determine the maximum ambient temperature for a specific design.
The BQ24747RHDT has built-in OVP and UVP features, but the specific implementation depends on the application requirements. Texas Instruments provides guidelines for implementing OVP and UVP in the datasheet, and it's also recommended to consult with a power management expert to determine the specific requirements for a given design.
The recommended input capacitor type and value depend on the specific application requirements, such as the input voltage and frequency. Texas Instruments recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, but it's also recommended to consult with capacitor manufacturers and consider factors such as capacitor size, voltage rating, and temperature rating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24747RHDT Overview

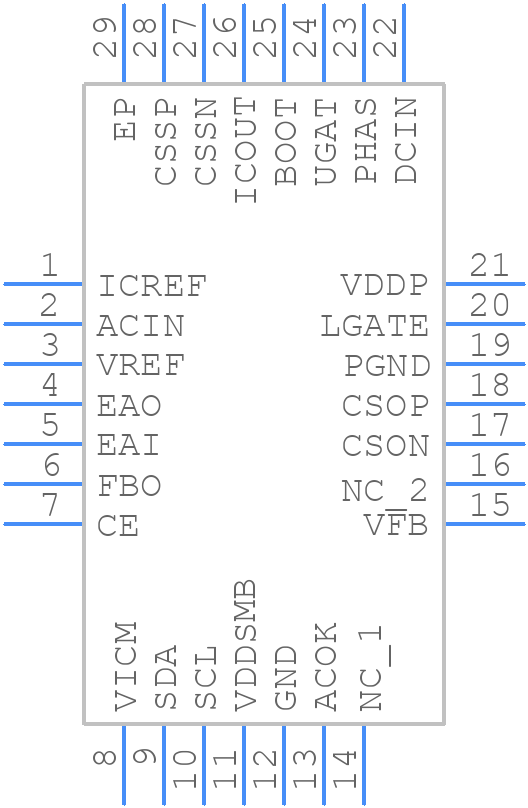

Use the download button to access the BQ24747RHDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ247,
or try a keyword search, such as Switching Regulator or Controllers
