The recommended layout and placement for the BQ25504RGTT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the loop area of the power traces to reduce EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To optimize the BQ25504RGTT for low-light or indoor harvesting, use a high-efficiency solar panel, increase the input capacitance, and adjust the V_OK threshold to a lower value. Additionally, consider using a maximum power point tracking (MPPT) algorithm to optimize energy harvesting.
The BQ25504RGTT can handle input voltages up to 22V, but it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device.
To ensure the BQ25504RGTT is operating in the most efficient mode, monitor the V_OK pin to ensure the device is in regulation, adjust the input capacitance to minimize power losses, and optimize the output voltage and current to match the load requirements.
The BQ25504RGTT has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. To prevent thermal issues, ensure good airflow, use a heat sink if necessary, and avoid operating the device in high-temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25504RGTT Overview

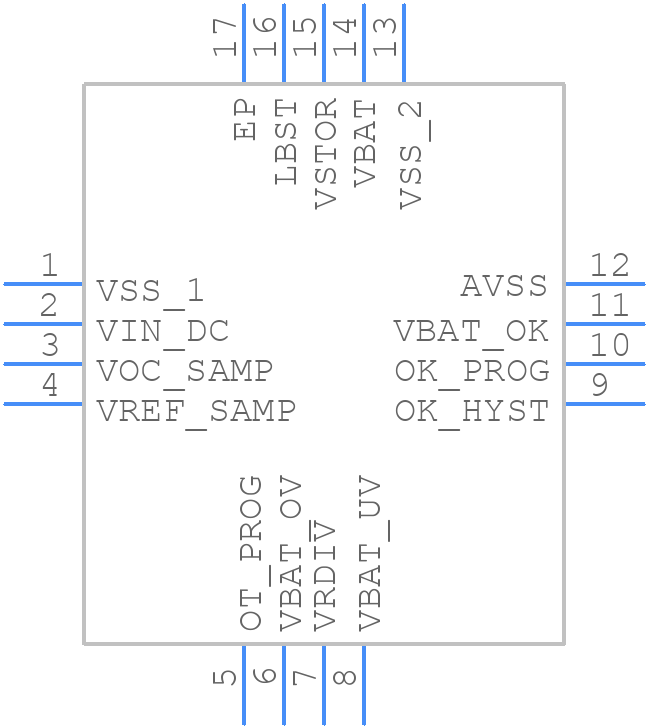

Use the download button to access the BQ25504RGTT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ255,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
